When configuring the limits of a Centurion Systems smart sliding gate motor, a graph diagram is presented after confirming the end-stops. This graph serves as a valuable tool for users to assess if the installation adheres to the provided manual. Here's how to understand and interpret this graph:

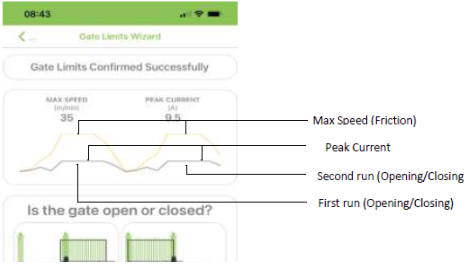

▪ The graph indicates the “max speed” (friction) vs “peak current”.
▪ The yellow graph line indicates the “peak current”.
▪ The grey graph line indicates the “max speed” (friction).
▪ A bad installation will indicate the “max speed” graph line being as high as the “peak current” graph line.
▪ A good installation will indicate the “max speed” graph line being lower than the “peak current” graph line. (Both graph lines will be smooth)



This feature is very useful when setting/programming the limits of a smart sliding gate motor.
