How to wire Closing Photon Infrared Beam to a Centurion D3 SMART sliding gate operator.

How to wire Closing Photon Infrared Beam to a Centurion D3 SMART sliding gate operator.

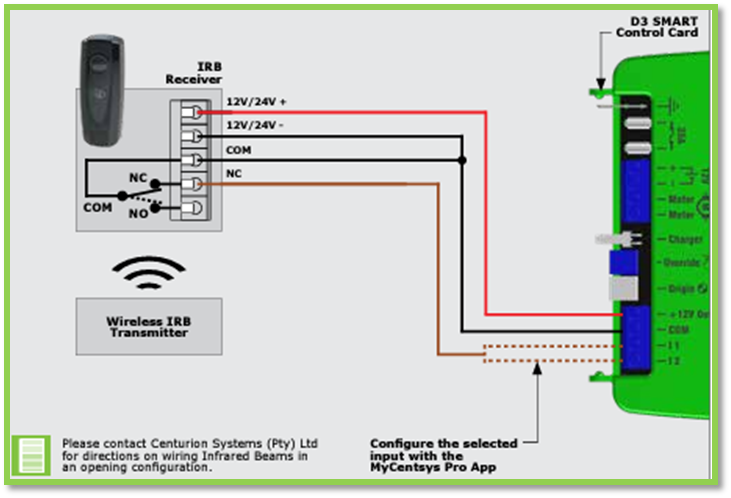

Below is a diagram showing how the Closing Infrared Beam is wired to a Centurion D3 SMART sliding gate operator. This setup enables the gate to stop and reopen automatically upon detecting an object in its path.

Closing Infrared Beam Wiring (Photon Infrared Beams):


How to configure the beam settings after wiring:

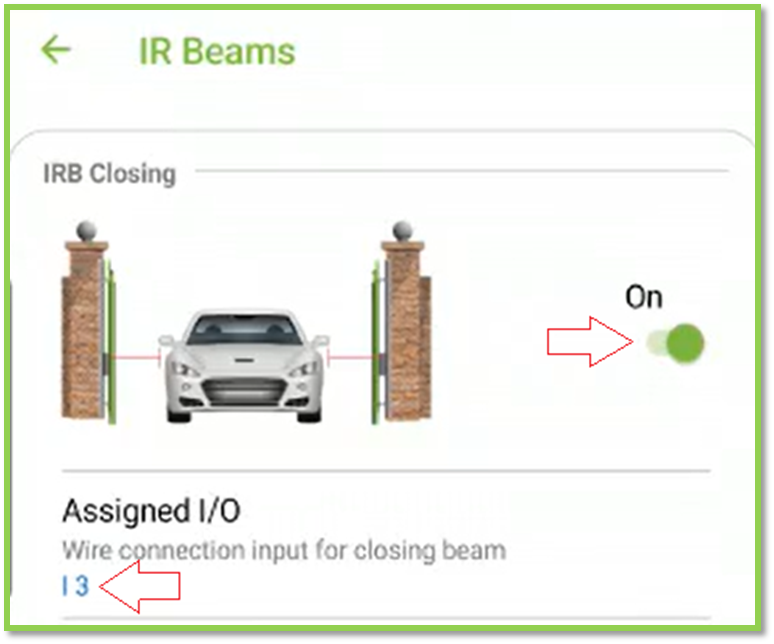

Setting on APP for closing beam:
  1. Setting < IRB Menu:
  2. Closing beam: ON
  3. Open beam: OFF
  4. Assigned IO: select IO used for beam N/C


N/B: If beam common is used, enable beam common under the IR beam menu
