How to wire a External receiver to an Centurion D3 SMART sliding gate operator

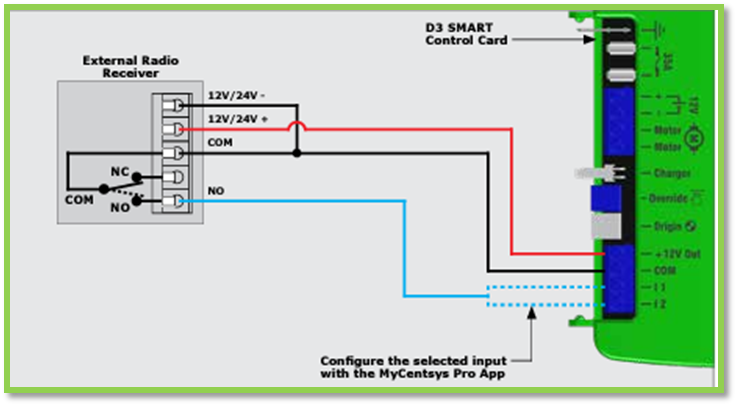

The below is a diagram of a external receiver wired to a Centurion D3 SMART sliding gate operator. This configuration will allow for gate activation on trigger and/or pedestrian inputs of the gate operator using a external remote.
Here are the configuration steps to follow after wiring an external receiver to a Centurion D3 SMART sliding gate operator:
-Connect to the motor via the MyCentsys Pro app.
-Navigate to Settings and select Triggers from the menu list.
-For the fully open and close trigger:
Select TRG.
Assign the IO used for the receiver.
-For the pedestrian opening trigger:
Select PED.
Assign the IO used for the receiver.
