D5 Evo SMART Synchronized motors with 3rd D5 Evo SMART Interlocked - Wiring Diagram

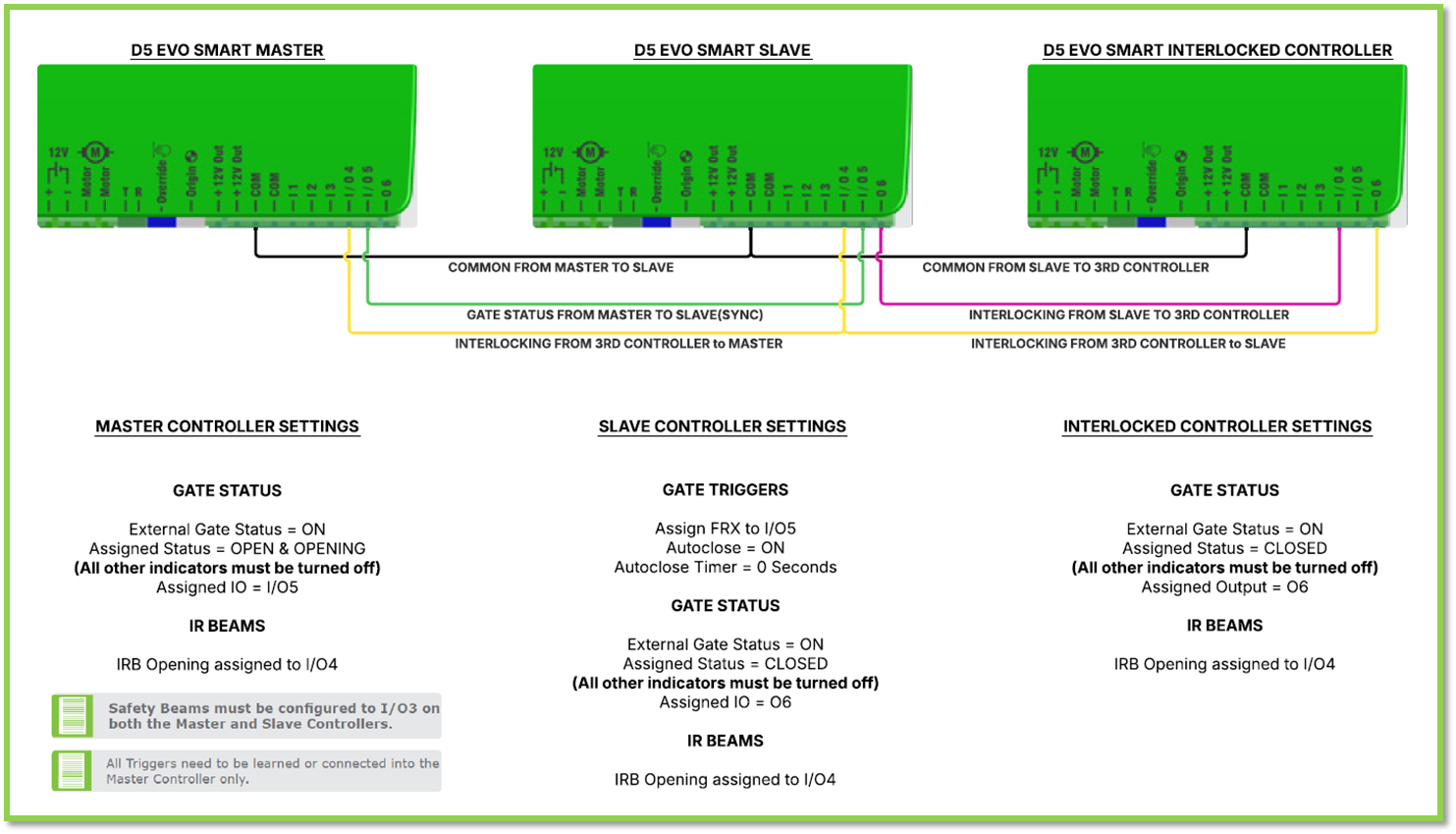

If you wish to synchronize two D5 Evo SMART motors and interlock a third D5 Evo SMART, please follow the diagram and settings provided below:
