How to wire a maglock on to a D5 EVO - Wiring diagram
This wiring diagram illustrates the proper connection of a maglock to the D5 Evo controller, enhancing the security features of your gate motor system.

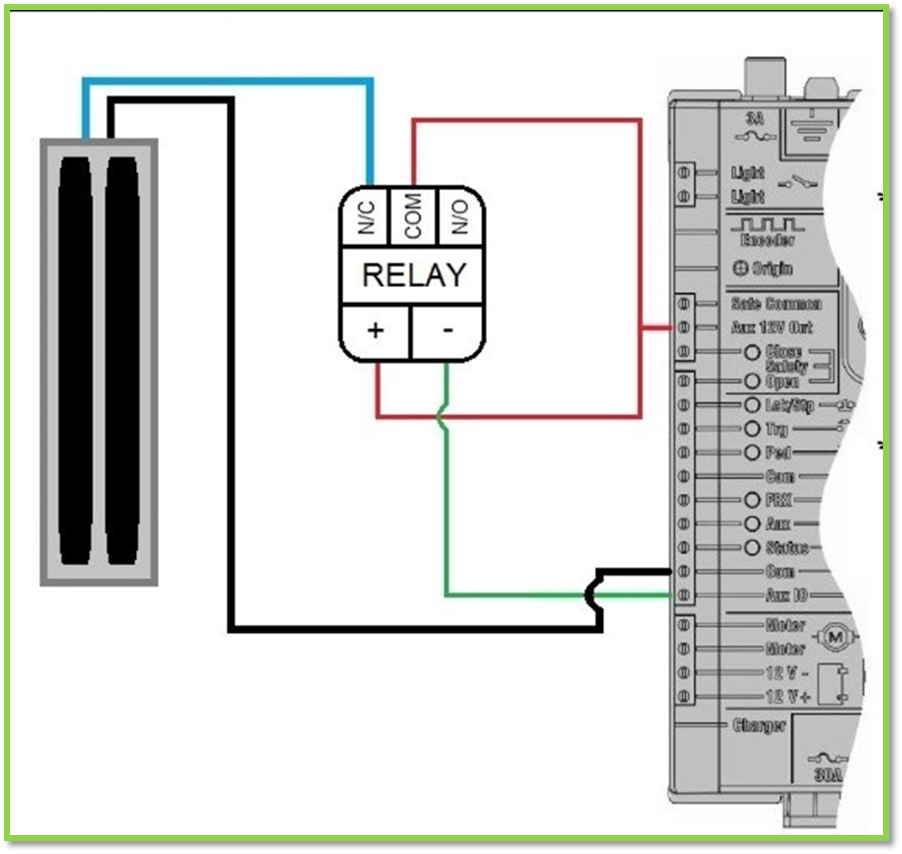

To achieve this, kindly follow the wiring diagram below:
Kindy refer to the settings that needs to be adjusted on the controller for the wiring to be successful:
Step 1:
- Navigate and select the safety menu
- Scroll and select the external gate status indication
- Select your indicator output to XIO
- Switch all gate status off (closed, closing, part-open, etc.) and only set the opening status on.
Step 2:
- Navigate and select the run profile menu
- Scroll down to sub menu called Pre open delay and set the delay to one second.
