Wiring I5 Closing Infrared Beams to a D5 EVO SMART Gate Motor - Wiring Diagram

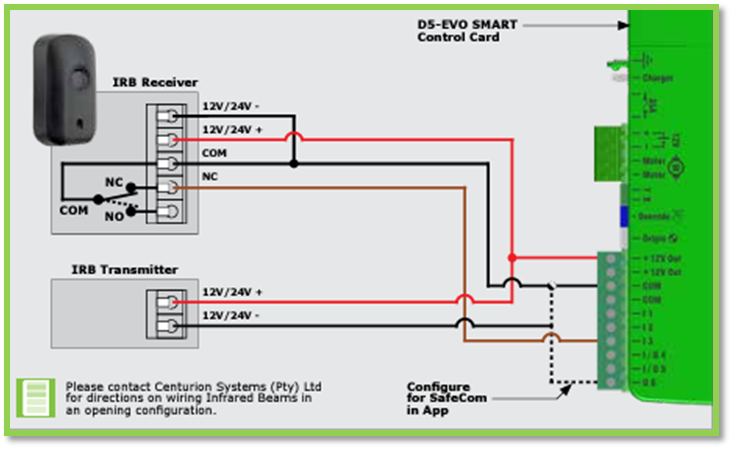

Below is a diagram showing how the Closing Infrared Beam is wired to a Centurion D5 EVO SMART sliding gate operator. This setup enables the gate to stop and reopen automatically upon detecting an object in its path.

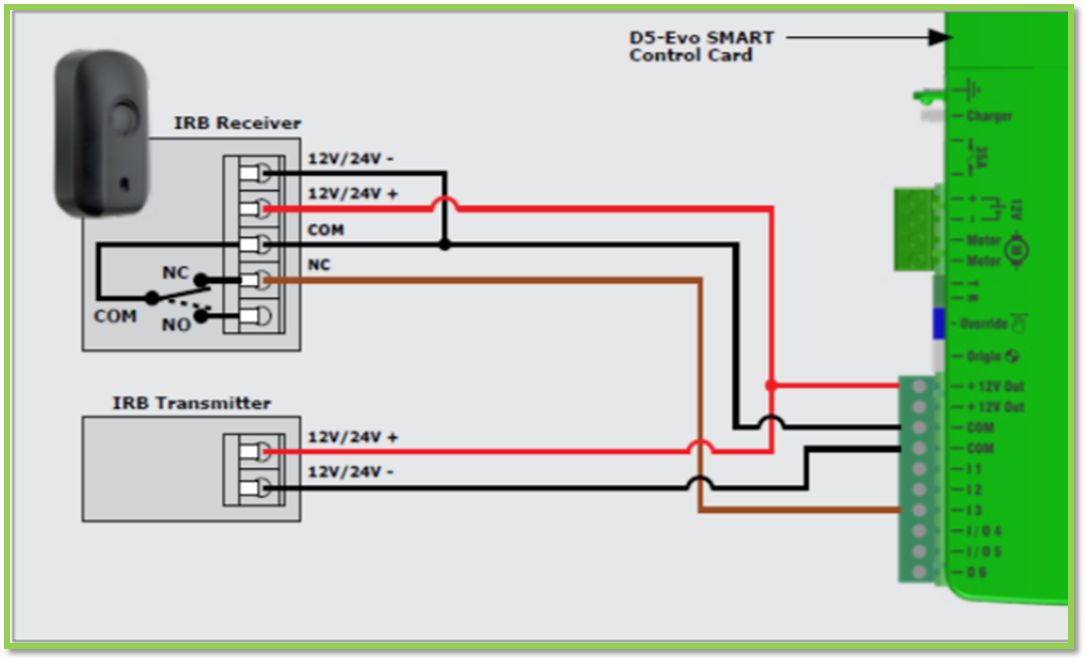

Closing I5 Infrared Beam Wiring without Beam (SAFE) Com:
How to Configure Beam Settings on a D5 EVO SMART (Without Beam Com):

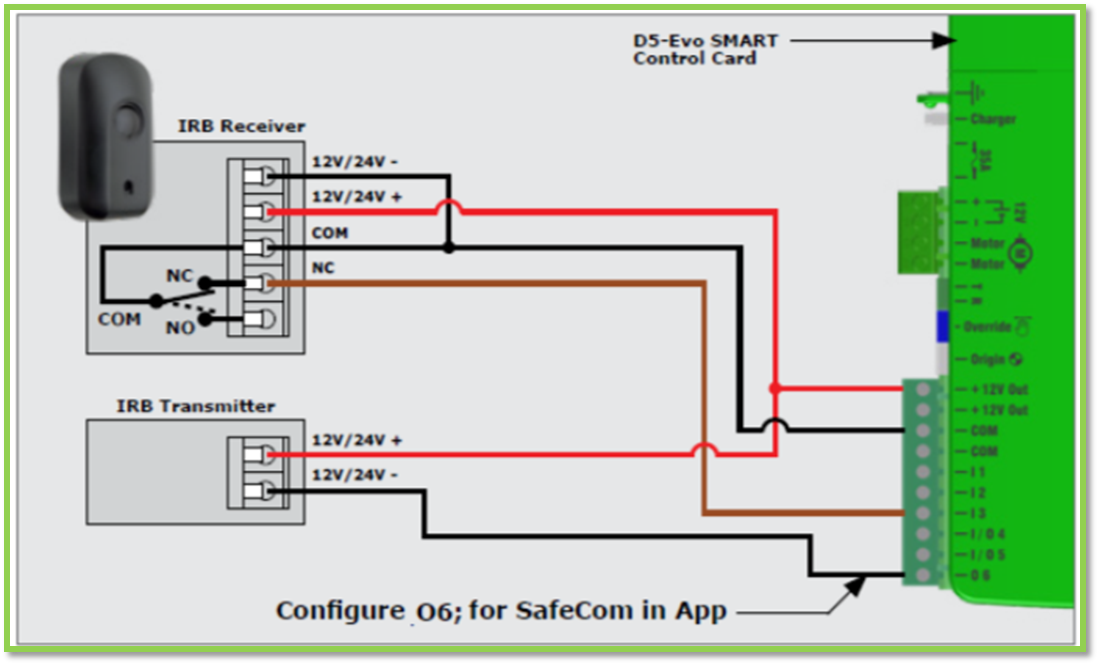

Closing I5 Infrared Beam Wiring with Beam (SAFE) Com:
How to Configure Beam Settings on a D5 EVO SMART (With Beam Com):
If you need further assistance or more information, please do not hesitate to contact us through any of the following channels:
WhatsApp – Message our Support Gurus directly at 083 650 4010
MyCentsys Pro app – Tap Live Chat under the Contact Us section
MyCentsys Remote app – Access Live Chat in the same section
GWEB portal – For GSM-related queries
Centurion Systems website – Perfect if you're using a desktop device
We’re here to help!
