How to wire a Smart Siren to a D20 Smart - Wiring Diagram
Wiring a smart siren to a smart gate motor can significantly enhance the security and functionality of your property, providing peace of mind and improving safety measure. Wiring a smart siren can either be used to provide an immediate audible alert when the gate is opened or tampered with, deterring potential intruders.

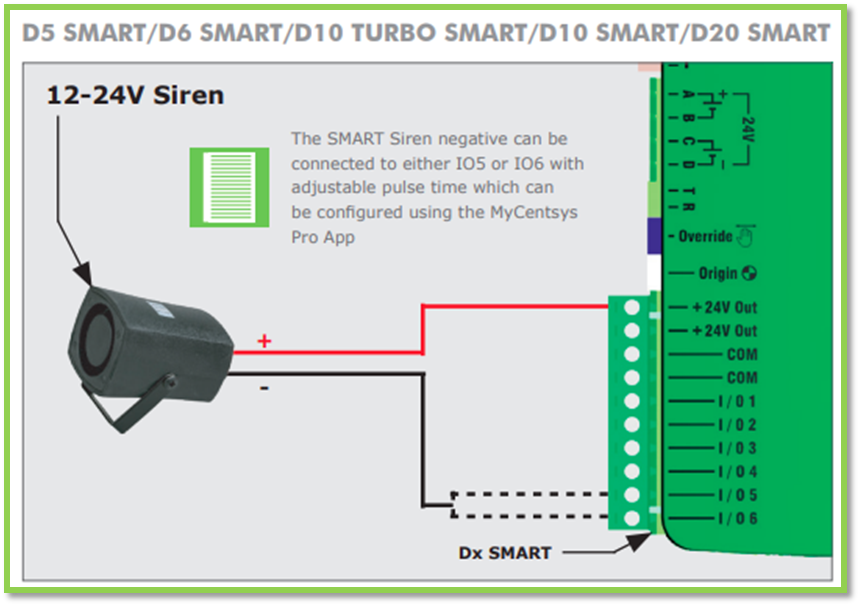

Kindly find the wiring diagram below:
Settings and Configuration: Please note that the Smart Siren can only support one of the following options at a time, not both:
Tamper Alarm Settings:
- Connect to your motor via the MyCentsys Pro app.
- Tap the round button at the bottom of the screen. and navigate to the Settings potion.
- From the dropdown list, navigate through the options and select Alarms.
- Choose "Tamper alarm" to start the configuration.
- Tap on the assigned "I/O" option and assign the IO used for the alarm, which should be either IO5 or IO6.
- If necessary, you can adjust the output pulse time to control how long the output remains activated when an alarm is triggered.
Beam Alarm Settings:
- Connect to your motor via the MyCentsys Pro app.
- Tap the round button at the bottom of the screen. and navigate to the Settings potion.
- From the dropdown list, navigate through the options and select Alarms.
- Choose "Beams Alarms" to start the configuration.
- For Closing Beams: Toggle the "IRB Closing” toggle switch to the "On" position.
- Set the time for which the beams must be broken to trigger the alarm under the "Beams Broken Time option."
- Tap on the assigned "I/O" option and assign the IO used for the alarm, which should be either IO5 or IO6
- Set the time the beams must be broken to trigger the alarm under the beams broken time.
- For Opening Beams, the above settings should be configured under the "IRB Opening" option and not the closing.
With these simple steps, your Smart alarms are now configured for optimal security.
