How to wire a G-Ultra to an D5 EVO SMART sliding gate operator

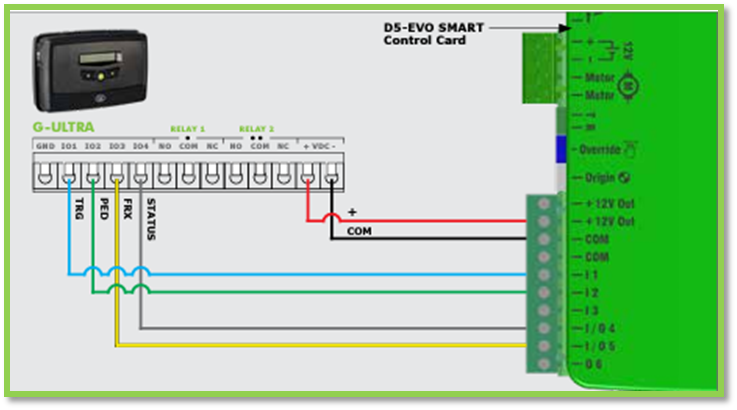

The below is a diagram of a G-Ultra wired to a D5 EVO SMART. This configuration will allow for gate activation on trigger, pedestrian, free exit and give you gate status notifications. You may only wire the requested suitable functions or all the functions if required.
After completing the wiring diagram, follow these steps for configurations on the D3:
- Connect to your motor via the MyCentsys Pro app.
- Navigate to Settings.
- Select TRG.
- Assign the IOs according to the wiring functions:
IO1 - TRG
IO2 - PED
IO3 - Keep open (FRX)
IO4 - gate status
