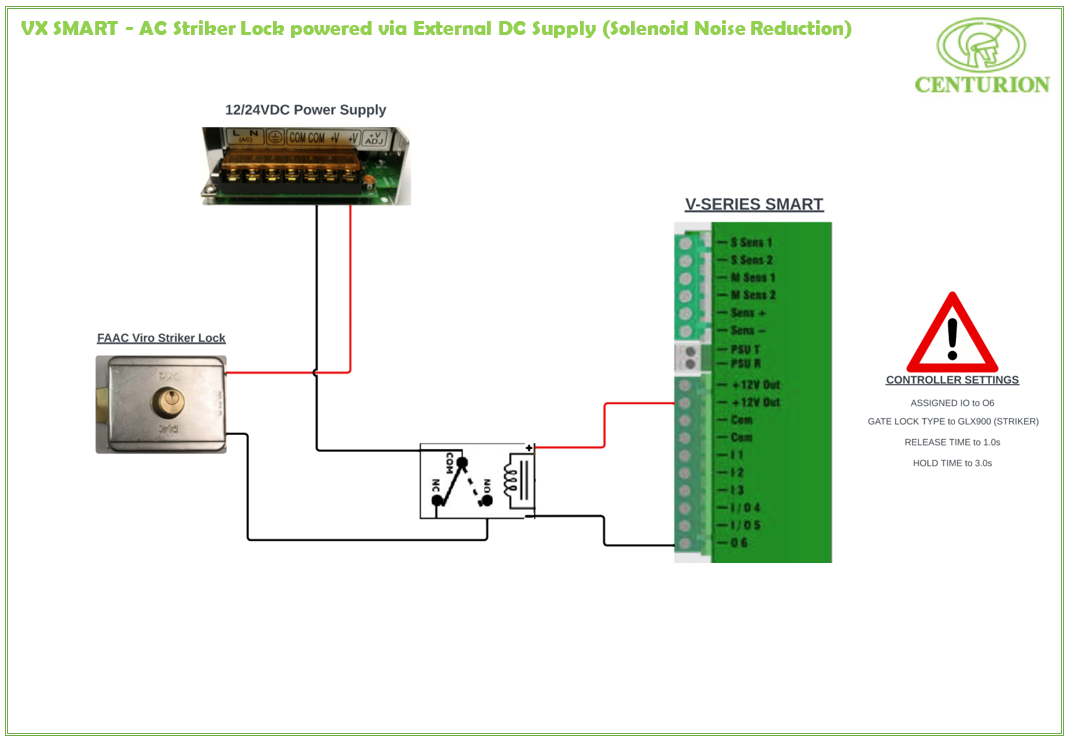

V-Series SMART AC Striker Lock - powered via External DC Supply (Solenoid Noise Reduction) - Wiring Diagram
