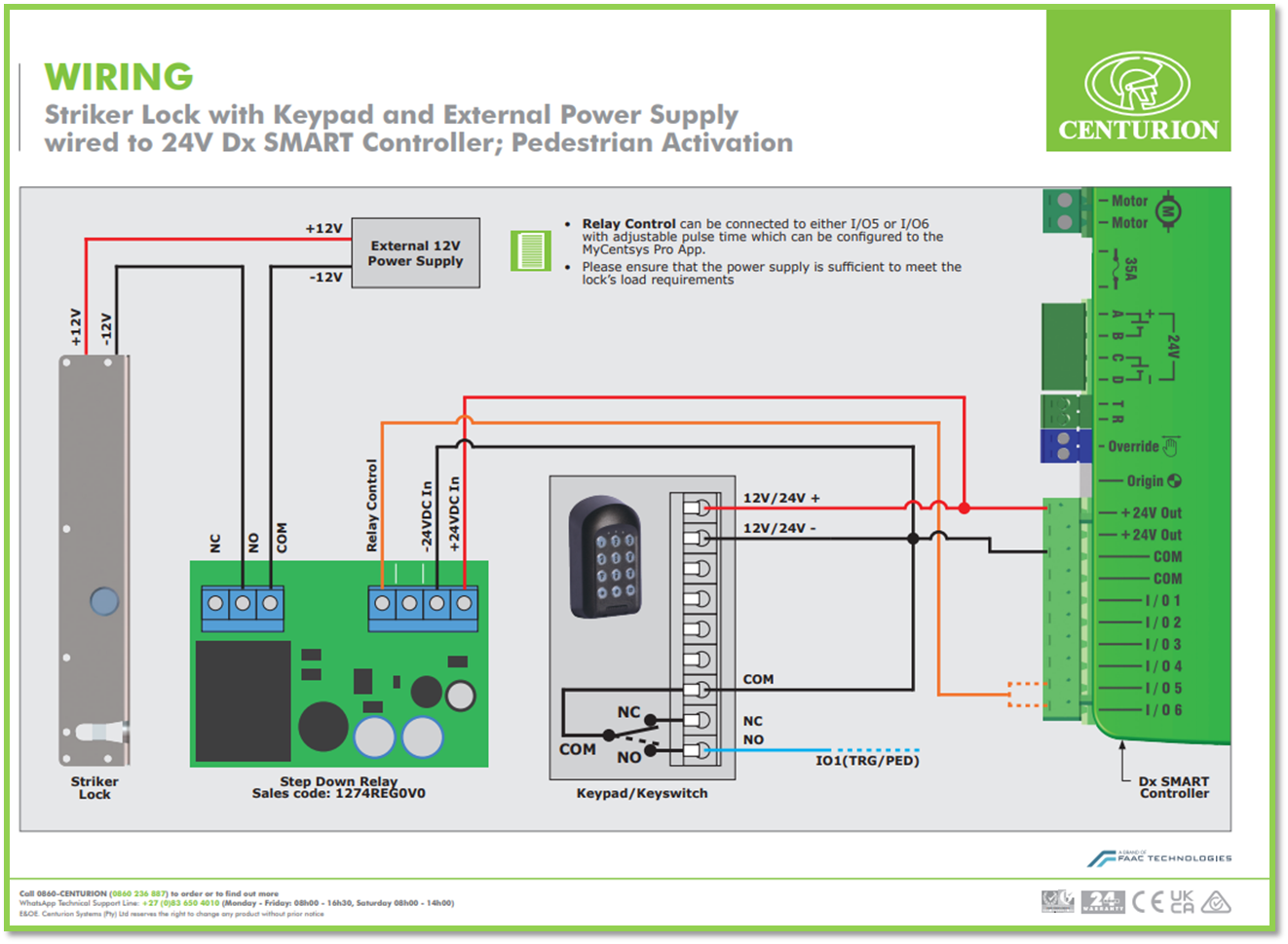

Striker Lock with Keypad and External Power supply wired to 24V DX SMART Controller, Pedestrian Activation - Wiring diagram
