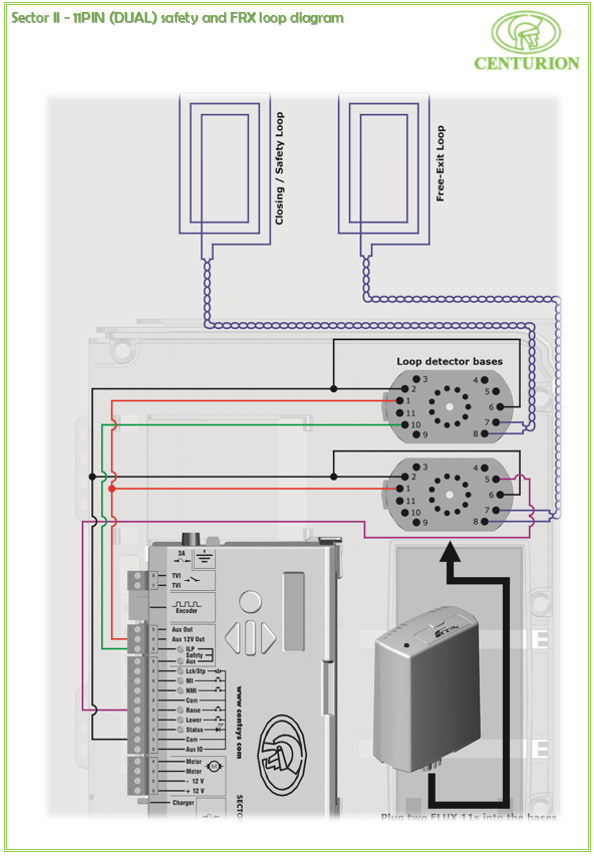

Sector II - 11PIN (DUAL) Safety and FRX loop diagram

• Related Articles

• Sector 2 Installation Manual

  Please find attached the installation manual for the Sector 2 boom barrier, which includes the following sections: Glossary of terms Product identification Physical installation Onsite electrical wiring Basic controller setup Installation handover ...

• How do I override Auto FRX on Sector Controllers

  Wiring: Programming: 1. Under Chrono-guard menu select Auto XIO 2. Select start time and end time (Ex. Start: MTWTF 07:00, End: MTWTF 17:00) 3. Invert logic OFF 4. Remote learned in as a Latch on the receiver. Basic Operation: When XIO is active ...

• Sector II – Flux SA Safety Loop Diagram

• Sector II - 11PIN Safety Loop Diagram

• Sector II – Dual Flux SA Loops Used for Safety and Free-Exit Diagram
