SDO5 SMART+ Photon Safety Beam Wiring Guide

Wiring Diagram

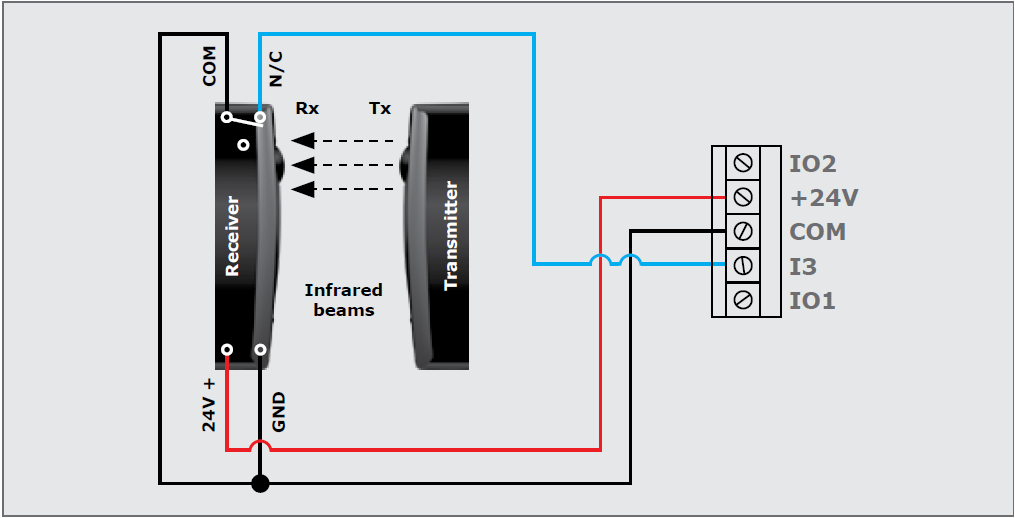

Wiring a Photon Safety Beam to the SDO5 SMART+

Summary
A step-by-step guide explaining how to correctly wire a Photon Safety Beam to an SDO5 SMART+ garage door operator, ensuring safe operation and reliable obstacle detection.

Note: Ensure that I3 is configured for a Safety Beam Input on the operator controller.
