SDO5 SMART+ I5 Safety Beams Wiring Guide

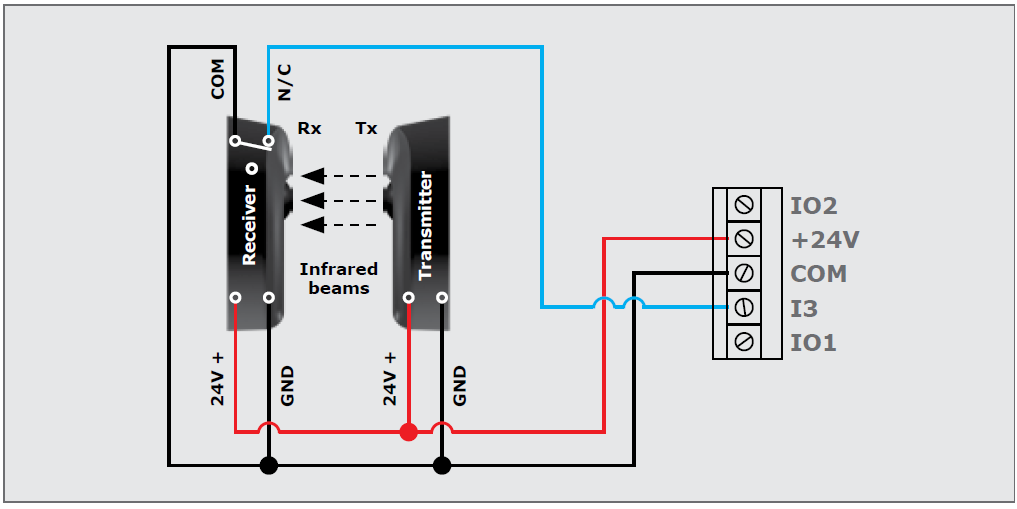

Wiring Diagram

Wiring I5 Safety Beams to the SDO5 SMART+

Summary
A step-by-step guide explaining how to correctly wire I5 Safety Beams to an SDO5 SMART+ garage door operator, ensuring safe operation and reliable obstacle detection.

Note: Ensure that I3 is configured for a Safety Beam Input on the operator controller.

Should you need further assistance or more information, please do not hesitate to reach out to our support gurus via our Centurion Systems WhatsApp service (+27836504010).
