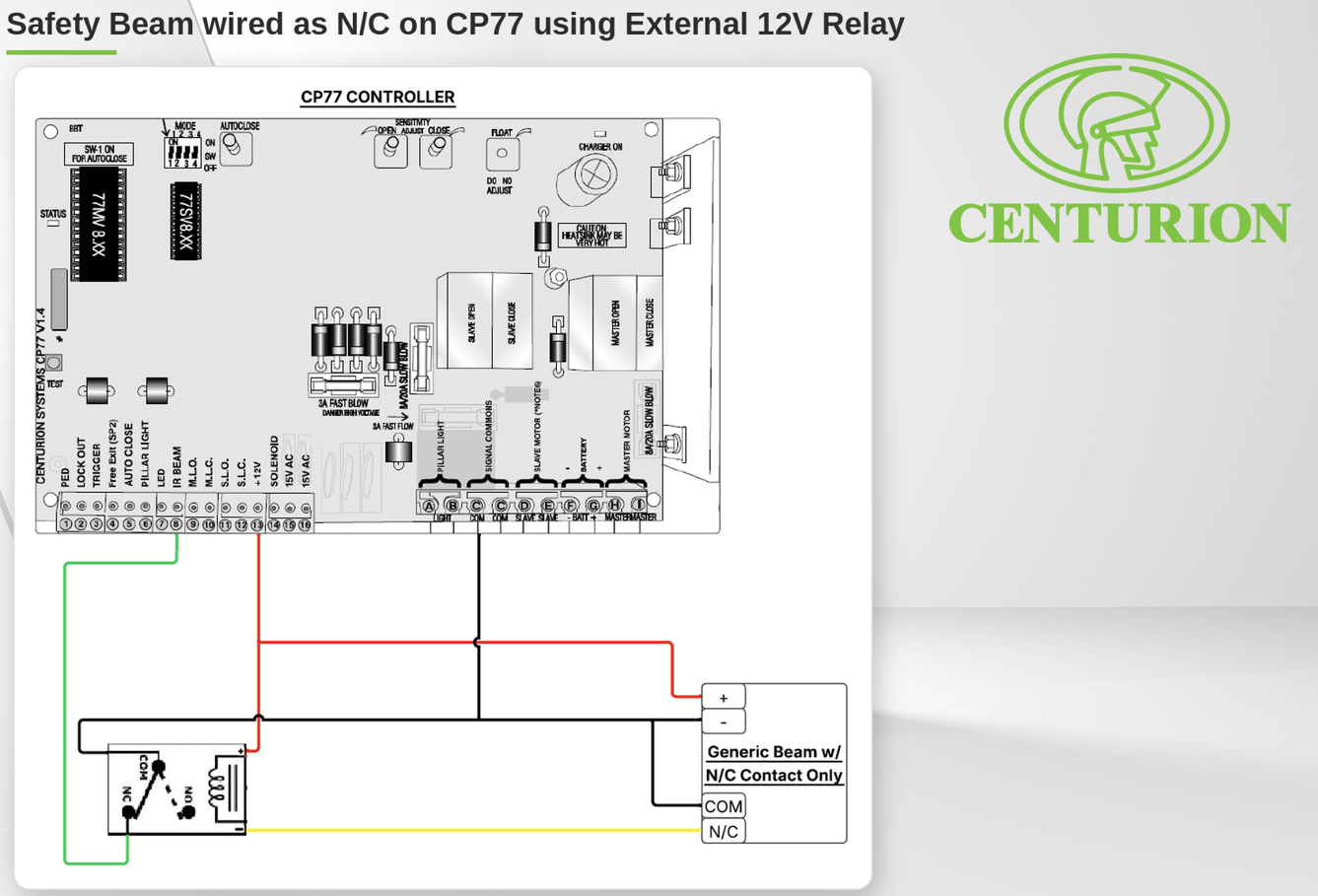

Safety Beam Wired as N/C on CP77 Using an External 12V Relay

Notes

This article explains how to connect a safety beam with a normally-closed (N/C) output to a Centurion CP77 controller using an external 12V relay.

The standard CP77 Infrared Beam (IRB) input is designed for a normally-open (N/O) contact. When interfacing a safety beam that provides an N/C output, an external 12V relay can be used to convert the N/C signal into the required N/O signal for the CP77.

This arrangement allows the CP77 to receive the appropriate safety-beam signal while maintaining the required electrical interface between the beam and controller.


Info
  • Safety beam transmitter powered from the appropriate 12V supply.
  • Safety beam receiver powered from the appropriate 12V supply.
  • The Safety Beam Receiver's N/C output connected to the coil circuit of the external 12V relay.
  • External relay powered from the 12V supply.
  • Relay COM connected to the CP77 Common.
  • Relay N/C connected to the CP77 IRB input.
  • The external relay therefore converts the beam's N/C switching arrangement into an N/O contact suitable for the CP77.
Notes
Should you need further assistance or more information, please do not hesitate to reach out to our support gurus via our Centurion Systems WhatsApp service (+27836504010).
