R6 Outward Swing Installations Dimensions

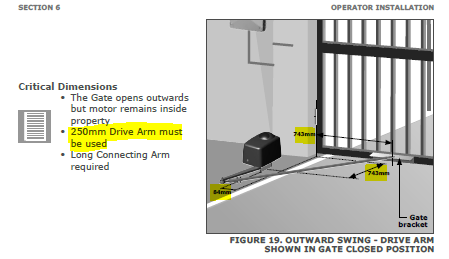

Please see the installation dimensions for outward swing below. These dimensions are fixed and must not be altered for outward swing installations:
Dimensions:
- A = 84mm
- B = 743mm
- C = 743mm
Note: Only the 250mm drive arm can be used for outward swing installations.Related Articles
