No Limits Set (Sector)

This error will display if the End-of-travel limits have not been established.

Solution

• Set the gate travel limits by accessing the Setting Limits menu (Menu1: Setting Limits) and following the onscreen prompts or steps supplied below:

The procedure for setting limits sector barrier.



1. Put the barrier pole in the fully-lowered position.

2. Press and hold the enter button    until the display shows “setting limits”.

3. Press the enter button , once, to get into the menu for setting the limits.

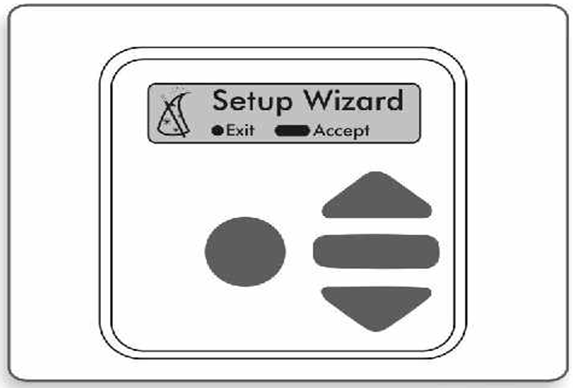

4. Follow the instructions on the display, and confirm the statement on the display by pressing the enter button    , once, until the display shows:

5. Press the enter button , once, and the barrier will start to set the limits on its own, while you wait.

6. The barrier will stop in either the fully-raised, or the fully-lowered position when finished, and the display will show: “Is the boom raised? Yes”

7. Confirm with the enter button   if you agree (i.e. the barrier is fully-raised), or select “No” using the down-arrow button .   Press the enter button , once, to confirm .

8. The display will indicate “Set up complete”.  Press the enter-button  , once.  “Setting limits” will be displayed.  Now press and release the exit button , once, to exit programming-mode.

9. The sector barrier is ready now for operation.

If the limit procedure fails, kindly confirm what error is displayed below the "Limits Fail" message. Once you identify the error, you can either contact our live chat support via WhatsApp or refer to our knowledge base for a possible solution.

You can reach us on WhatsApp at CENTURION number: +27 (0)83 650 4010.
