Manual Override not Toggle or Disconnected

Manual Override not Toggle or Disconnected

Possible solutions:

  1. Ensure manual release blue connector block is plug to override:

  1. Ensure that blue cable is on the left and grey cable on the right of your blue connector block:

  1. Ensure that blue connector block is push in properly:

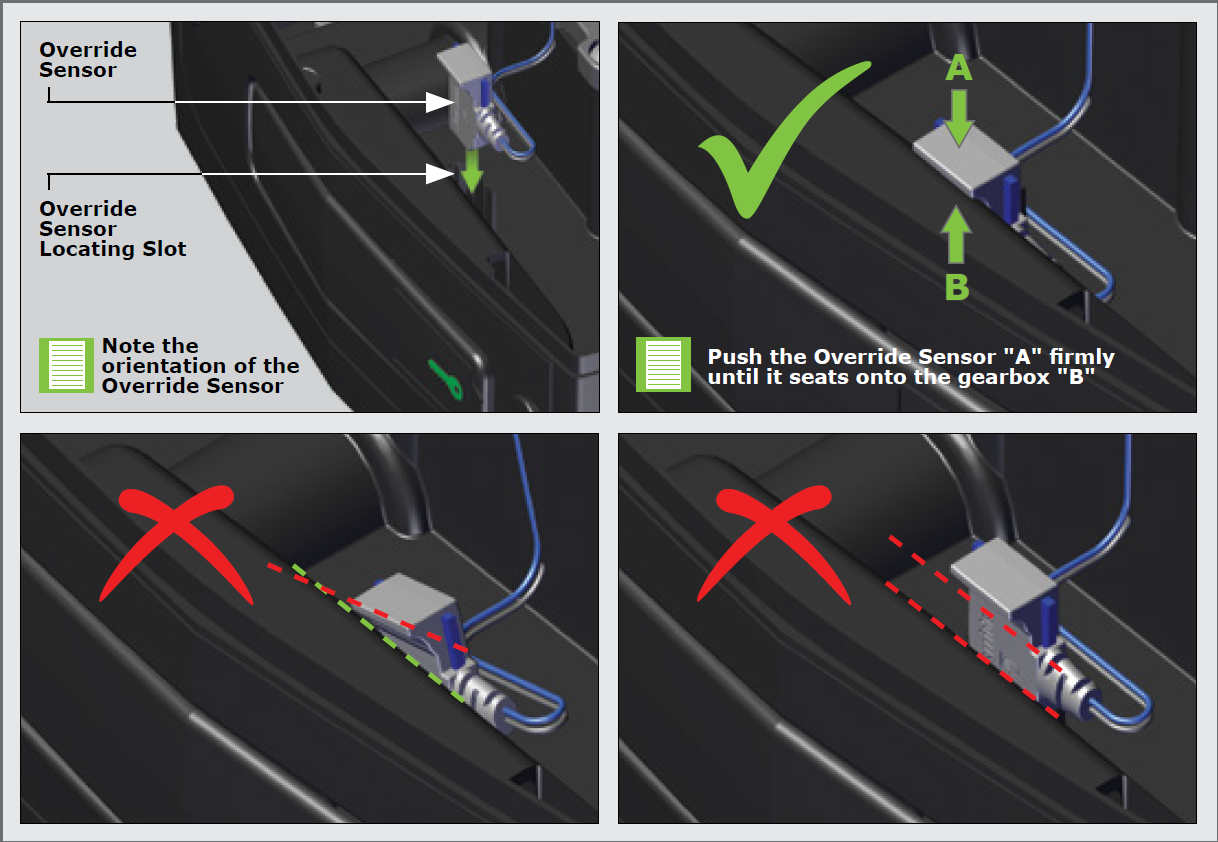

  1. Ensure that the bottom part of the sensor is plug in properly:

  1. Disconnect all power and remove override sensor on the board wait for two minute and power back.
If all the points mentioned above has been check out and the problem persist, kindly replace the override sensor. Alternatively, consider taking the motor to your nearest CENTURION branch for testing.
