How to wire the Lattice Slave Head to the Master L1000 Head

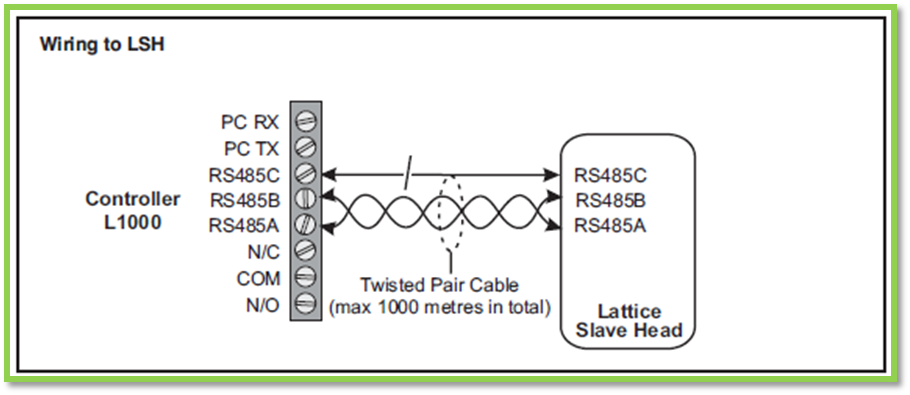

The following diagrams below show how to wire the L1000 Controller head to the Lattice slave heads:
