How to wire Photon Closing Infrared Beam to a Centurion D5 EVO SMART sliding gate operator
Below is a diagram showing how the Closing Infrared Beam is wired to a Centurion D5 EVO SMART sliding gate operator. This setup enables the gate to stop and reopen automatically upon detecting an object in its path.

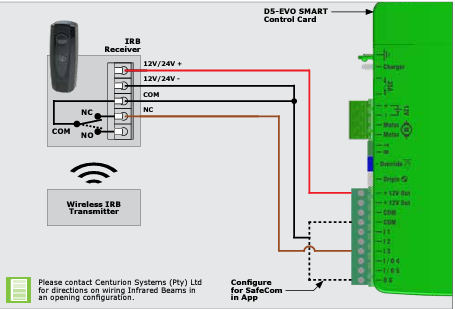

Closing Infrared Beam Wiring (Photon Infrared Beams):
How to configure the beam settings after wiring:

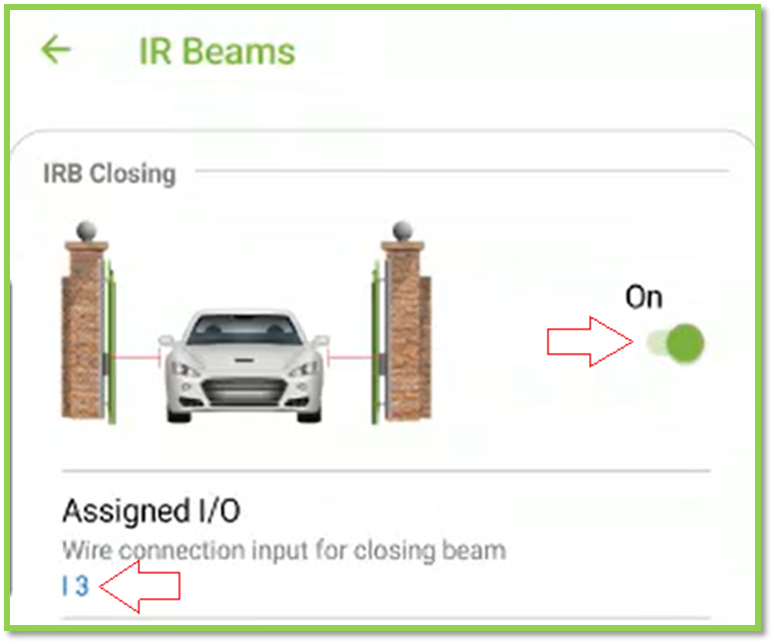

Setting on APP for closing beam:
- Setting < IRB Menu:
- Closing beam: ON
- Open beam: OFF
- Assigned IO: select IO used for beam N/C
N/B: If beam common is used, enable beam common under the IR beam menu
