How to wire Closing i5 Infrared Beams to a Centurion D3 SMART sliding gate operator

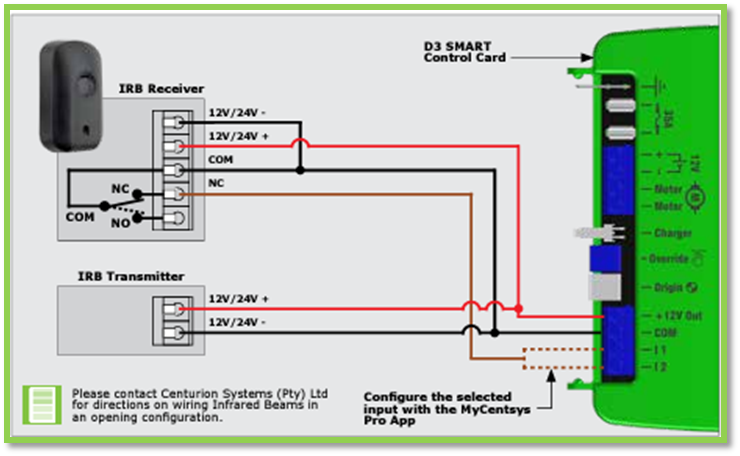

Below is a diagram showing how the Closing Infrared Beam is wired to a Centurion D3 SMART sliding gate operator. This setup enables the gate to stop and reopen automatically upon detecting an object in its path.
Closing Infrared Beam Wiring (i5 Infrared Beams):

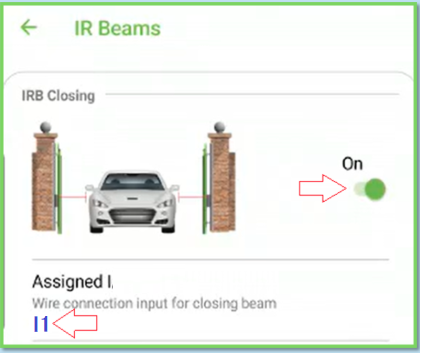

How to configure the beam settings after wiring:
- Setting < IRB Menu:
- Closing beam: ON
- Open beam: OFF
- Assigned Input: select the I used for beam N/C
N/B: If beam common is used, enable beam common under the IR beam menu
