How to Connect a Strobe Light to a D5-EVO for Activation During Gate Operations

How to Connect a Strobe Light to a D5-EVO for Activation During Gate Operations

A strobe light alerts people to the gate's movement, reducing accident risks, deters intruders by signaling an automated system, meets safety regulations in some areas, and helps maintain awareness in busy environments.

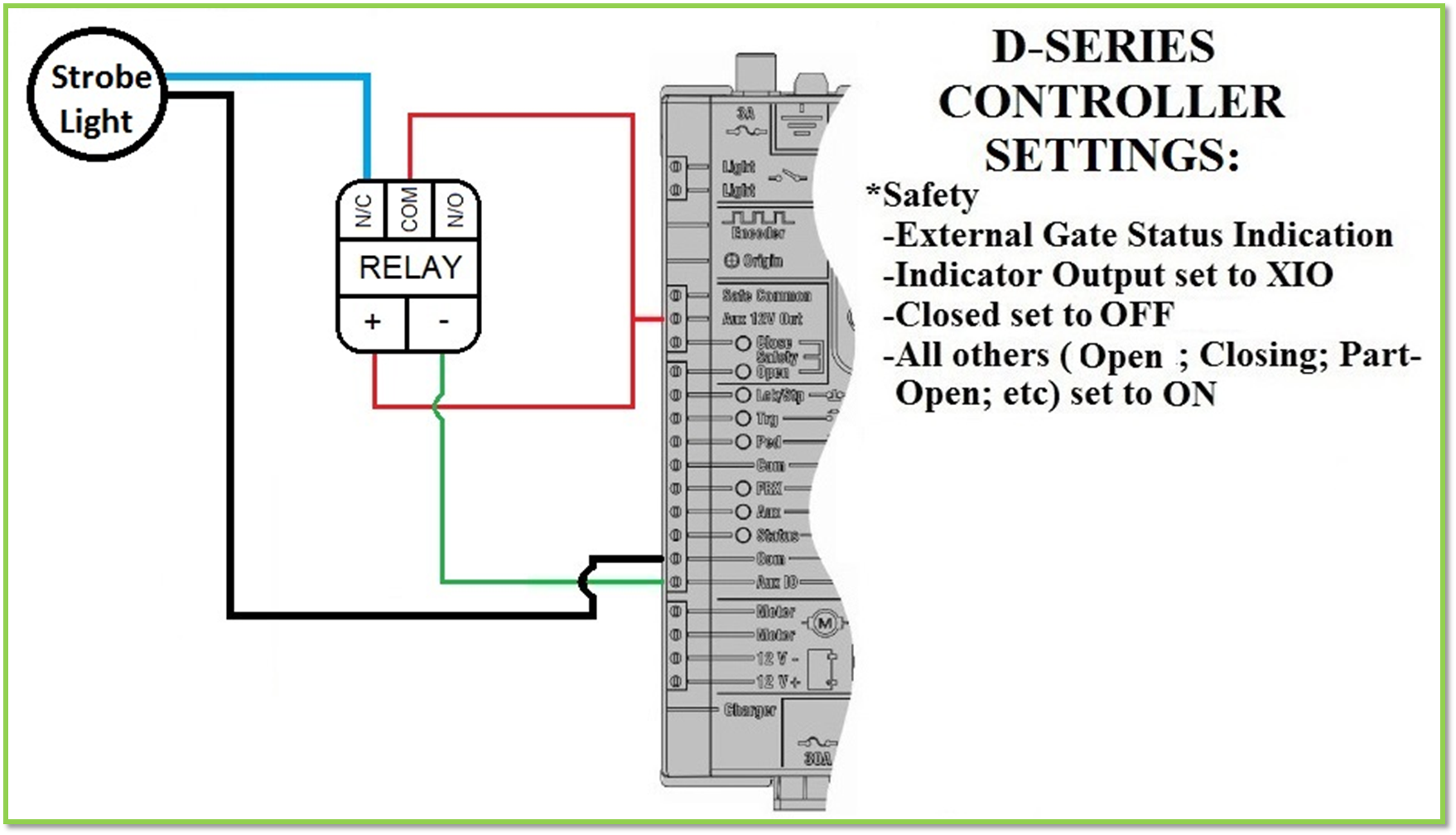

Please find wiring diagram below:

Please follow the steps below for setting and configuration:
  • Navigate to and select the Safety menu.
  • Enter the External Gate Status Indicator option.
  • Set the Closed Status to Off.
  • Confirm that all other statuses, such as Open, Closing, Part Open, etc., are set to On.
