Connecting a Siren to a D5 EVO Motor for Forced Gate Entry Alerts

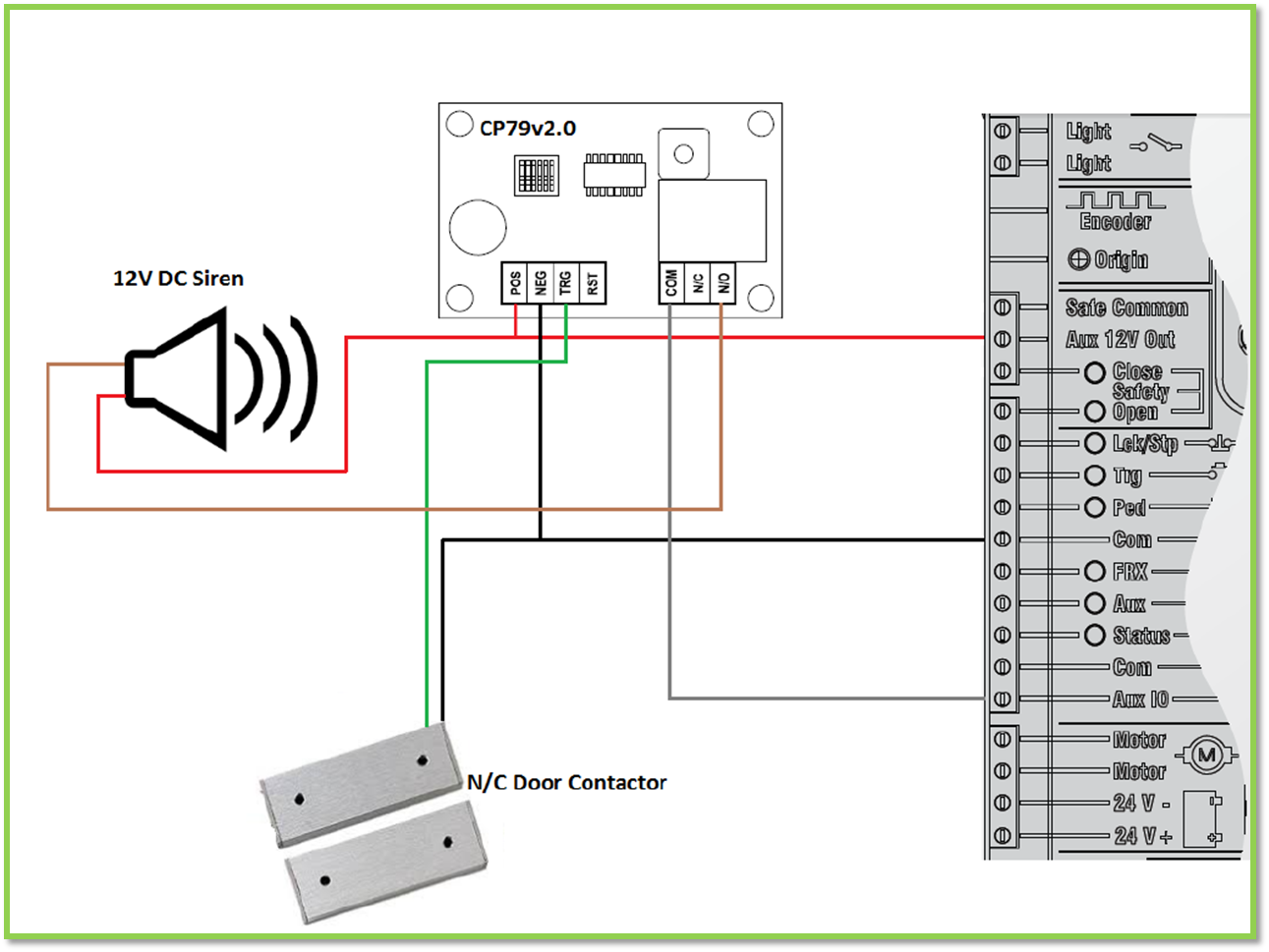

The wiring demonstration below will trigger the siren if the gate is forced open without a user pressing their remote.
Wiring:
