How to wire a Midi Robot wired to the V-series - Wiring Diagram

How to wire a Midi Robot wired to the V-series - Wiring Diagram

Using a robot or automated system for a gate motor enhances the user experience by combining security, convenience, and technology in a way that simplifies everyday access to properties.

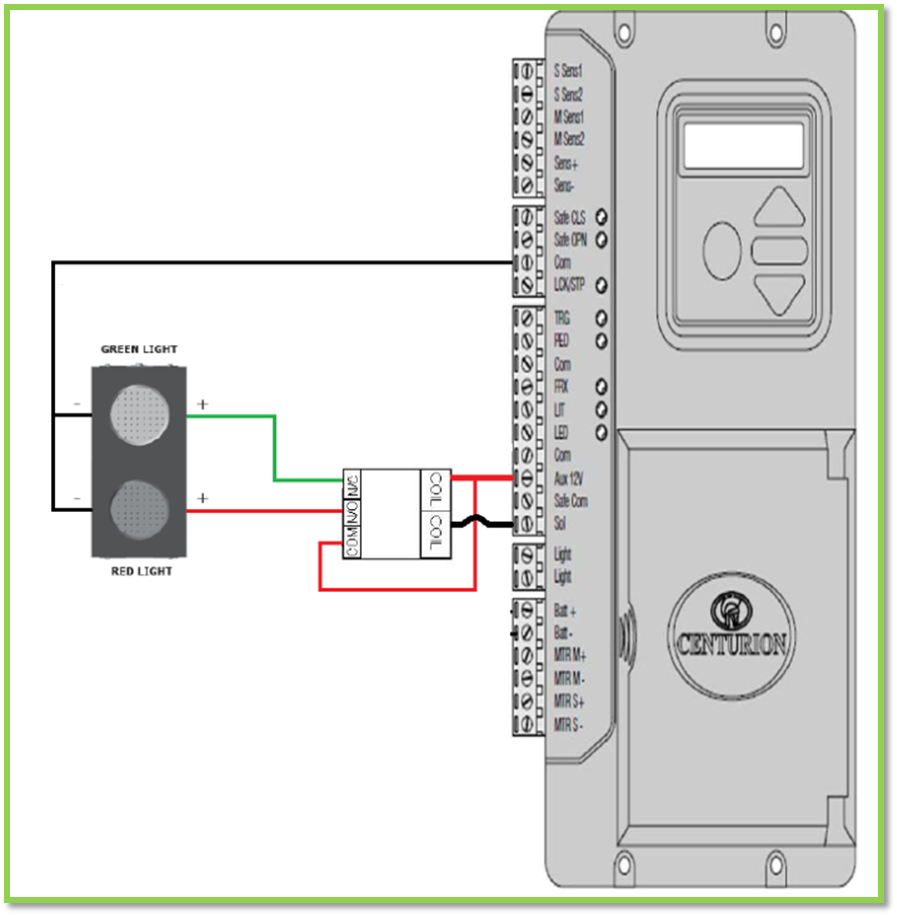

Wiring Diagram:
Setting and Configuration for V-Series Board:
  1. Access the Gate Lock Menu: Navigate to the gate lock menu on the V-series board interface.
  2. Status: Set to On to activate the gate lock feature.
  3. Lock Type: Choose Mag for a magnetic lock configuration.
  4. Release Time: Set the release time to 0 Seconds to ensure the lock releases immediately when triggered.
  5. Pre-Release Time: Set the pre-release time to 0 seconds to prevent any delay before the lock releases.
  6. Lock Location: Select Open to configure the lock to operate when the gate is in the open position.
  7. Power Supply Unit (PSU):  Ensure the PSU is set to DC to provide the appropriate power type for the lock.
