How to Wire a Loop Detector to a D5 EVO for Gate Activation via Onboard Remote When a Car Is on the Loop

Wiring a loop detector for the D5 EVO gate motor to trigger the gate only when a car is on the loop enhances security and operational efficiency.  This configuration ensures that the gate opens only when a vehicle is present, preventing unauthorized access by individuals on foot or by remote control.

Wiring and configurations:

• Related Articles

• How to connect an external receiver to fully open and close the gate via remote button (trigger gate) on the D5 EVO.

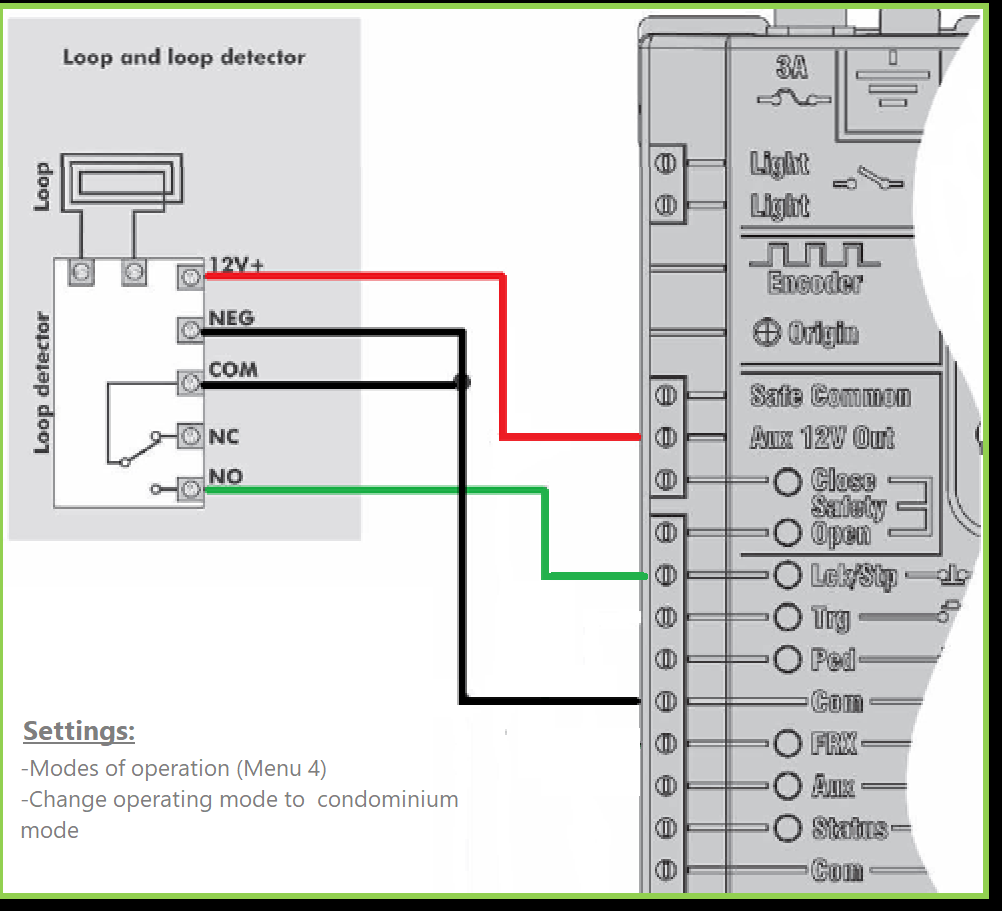

  Kindly follow the wiring diagram below to fully open and close the gate via remote button using an external receiver (TRG).

• D5 Evo Mechanical Installation Guide

  Please find attached the installation manual for the D5 EVO, which includes the following sections: Introduction Safety instructions Icons used in this guide General description Product identification Technical specifications Site preparation ...

• How to wire a free-exit Loop to an Centurion D5 EVO SMART sliding gate operator

  Below is a diagram showing how the free-exit Loop is wired to a Centurion D5 EVO SMART sliding gate operator. This setup will trigger the gate to open when a vehicle is standing on the loop for easy exit.

• How to wire a Free Exit Loop on the D5 EVO Sliding Gate Motor.

  Below is a diagram showing how a free-exit loop is wired to a Centurion D5 EVO sliding gate operator. This setup will trigger the FRX, allowing the gate to open when a vehicle is standing on the loop for easy exit. Free Exit Loop wired to D5 EVO ...

• How to wire a G-Ultra to an D5 EVO SMART sliding gate operator

  The below is a diagram of a G-Ultra wired to a D5 EVO SMART. This configuration will allow for gate activation on trigger, pedestrian, free exit and give you gate status notifications. You may only wire the requested suitable functions or all the ...
