How to wire a Free Exit Loop on the D5 EVO Sliding Gate Motor.

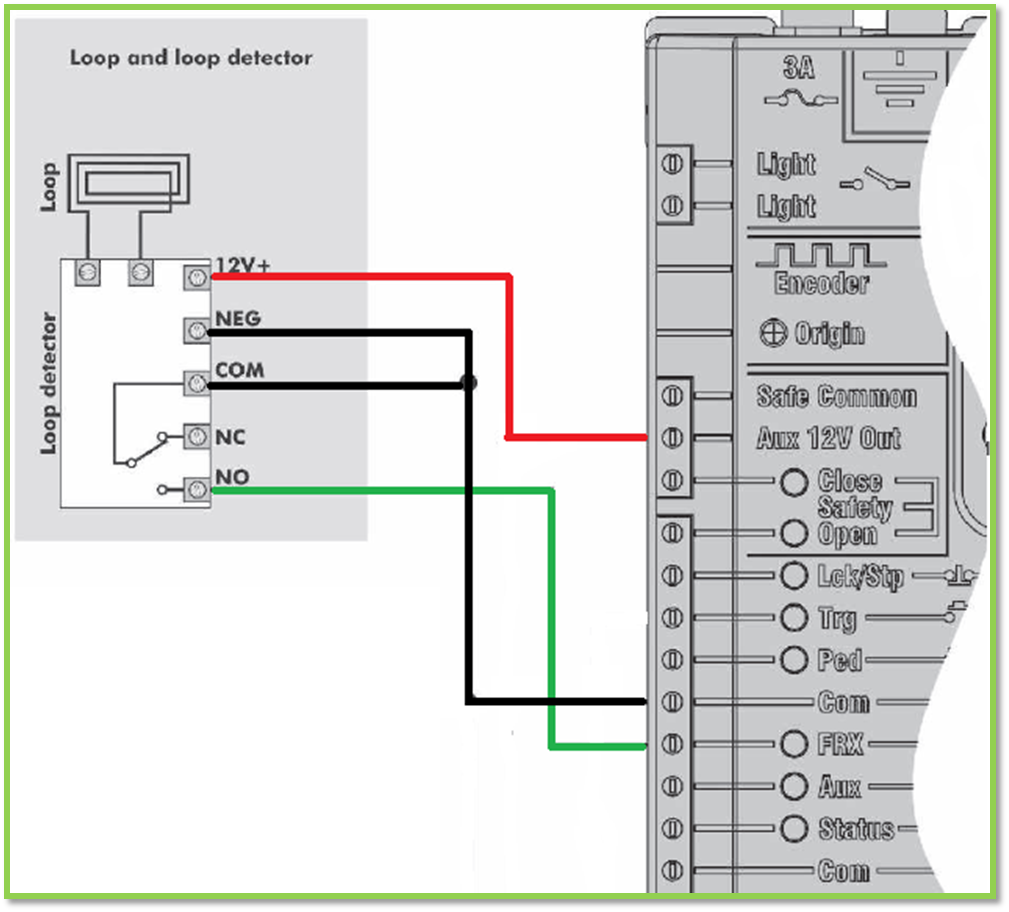

Below is a diagram showing how a free-exit loop is wired to a Centurion D5 EVO sliding gate operator. This setup will trigger the FRX, allowing the gate to open when a vehicle is standing on the loop for easy exit.
Free Exit Loop wired to D5 EVO diagram:
