How to wire an external receiver for the trigger funtion to a Centurion D5 EVO SMART sliding gate operator

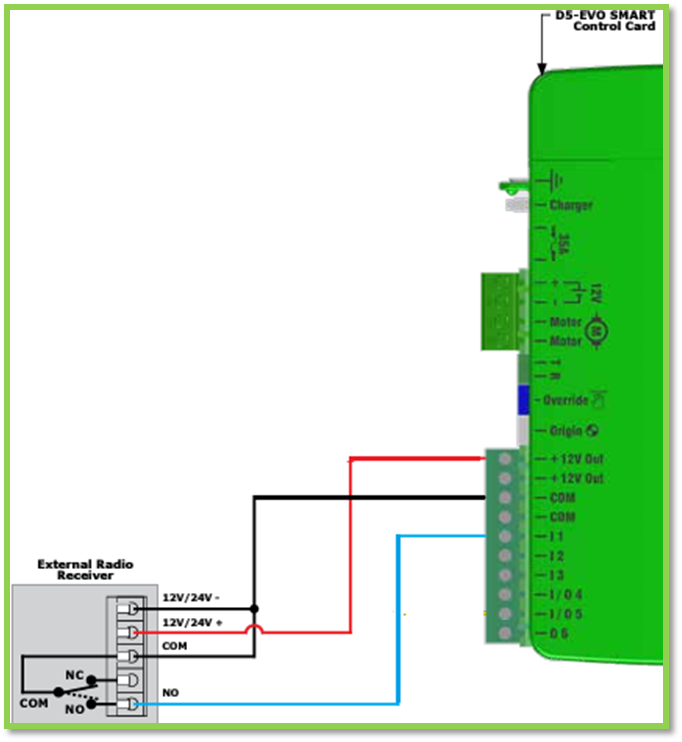

The below is a diagram  of a external receiver wired to  a Centurion D5 EVO SMART sliding gate operator. This configuration will allow for gate activation on trigger using a external remote.

Here are the configuration steps to follow after wiring an external receiver to a Centurion D5 EVO SMART sliding gate operator:

-Connect to the motor via the MyCentsys Pro app.

-Navigate to Settings and select Triggers from the menu list.

-For the fully open and close trigger:

Select TRG.

Assign the IO used for the receiver.
