How to wire a free-exit Loop to an Centurion D5 EVO SMART sliding gate operator

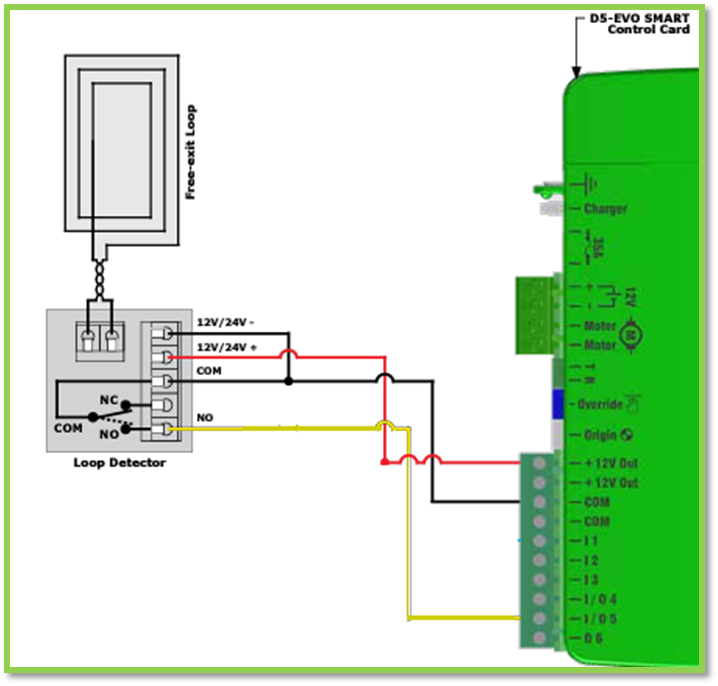

Below is a diagram showing how the free-exit Loop is wired to a Centurion D5 EVO SMART sliding gate operator. This setup will trigger the gate to open when a vehicle is standing on the loop for easy exit.
