How to connect a solar panel to the D3 SMART controller

How to connect a solar panel to the D3 SMART controller

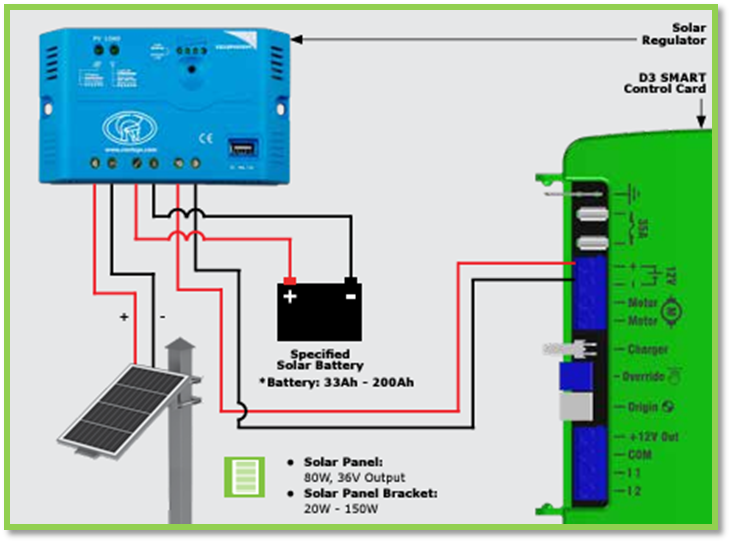

The below is a diagram  of a Solar Panel, external battery and regulator wired to  a Centurion D3 SMART sliding gate operator.  This setup enables the motor to be powered by a solar system rather than mains power.

Solar Panel Wiring:
