How to Program and Learn a new SmartGuard AIR user Code on to the D5-EVO Motor's Onboard Receiver for Pedestrian opening

Follow the steps below to program a code and learn it onto the motor's onboard receiver for Pedestrian opening.

The following procedure will add a new access code at a specific location in the SmartGuard Memory, referred to as an address and will assign which channel the code must activate and how many accesses are allowed before the code becomes invalid.

For the fully open trigger, we recommend using channel one, and for the pedestrian trigger, we suggest using channel two. Different functions cannot be assigned to the same channel.

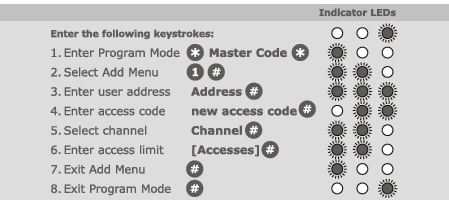

Example:

Step 1 = *1234* (your currant master code)

Step  2 = 1# (one is for adding menu)

Step  3 = 5# (an address slot can only be used once, thus the next code will be on 6#)

Step  4 = 1999# (new user code you want to program)

Step  5 = 2# (any channel between 1 - 16  not used for other functions programmed already)

Step 6 = # - if no limits is needed enter # or enter the amount of times the code should work and then press #

Step 7 = #  (Exit menu)

Step 8 = # (Exit programming)

Once the code has been programmed, kindly learn the code onto the D5 EVO onboard receiver as per below steps:

1. Press and hold the oblong button (between the two arrows) for approximately 2

seconds

2. A screen will appear that says “Setting Limits”, press the up arrow once until the  screen displays “Remote Controls (TX)”

3. Press and release the oblong button  (don’t hold it)

4. The screen will display “Add Remote”

5. Press and release the oblong button  (it serves as sort of an “Enter” button)

6. The screen will display “Select Function: “Pedestrian - PED”

7. Press and release the oblong button

8. The screen will now display “Time bar" Remote: YES” - Scroll to NO

9. Press and release the oblong button

10. The unit will now ask you to press your remote button

11. Enter the already created keypad code and then press #

12. A unique ID number will appear on the screen, indicating that the button has been successfully learned

13. Now press the ROUND button  TWICE to exit the menu

14. You are good to go!
