How to Pair Your SMART Gate Motor with a Smartguard AIR Keypad
To pair the SMART Motor with the Smartguard AIR Keypad using the MyCentsys Pro app, please follow the steps below:
Video Carrying Steps:

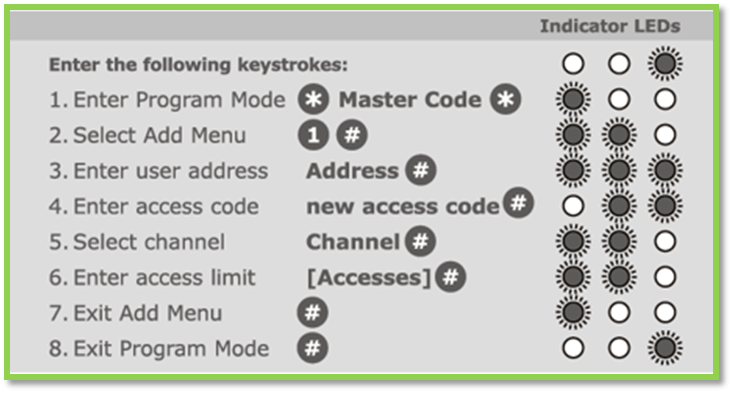

First, create a user code on your Smartguard AIR Keypad:
1. Access the Master Code Menu:
- Begin by typing Star (), Master Code, Star (). The default Master Code is 1234.
2. Enter Add User Mode:
- Press 1, followed by Hash (#) to access the Add Menu.
3. Assign a User Address:
- Type an unused user address and press Hash (#).
4. Enter a User Code:
- Enter the new user code you wish to create and press Hash (#).
5. Select Channel Number:
- Choose your desired channel number (between 1 and 15) and press Hash (#).
6. Exit Programming:
- If no access limits are needed, press Hash (#) three times to exit the programming mode.
How to Pair the Smart Guard Air Keypad to the SMART motor:
1. Select Smart Guard Air Setting:
- From the drop-down list in the app, select Smart Guard Air Setting.
2. Add New Code:
- Click on the Add icon located at the bottom of the page.
3. Enter the Code:
- On the Smart Guard Keypad, enter your newly created code, followed by the Hash (#) button.
4. Name the Keypad:
- Assign a name to the keypad for easier identification, and provide a function name if required.
5. Assign Function:
- Tap on Action: NONE, and from the drop-down list, select the desired function for the code. After selecting, you'll be redirected back to the keypad setup page.
6. Complete Setup:
- If no further configuration is needed, tap on the Done button at the bottom of the page.
Your Smart Guard Air Keypad is now ready for operation!
