How to interlock a DX SMART gate motor with a CP80 (D3 or D5) motor- Wiring Diagram

The following connections will allow an interlocked system whereby one operator is inhibited from moving (in either direction) while the other operator is in motion, and vice versa.

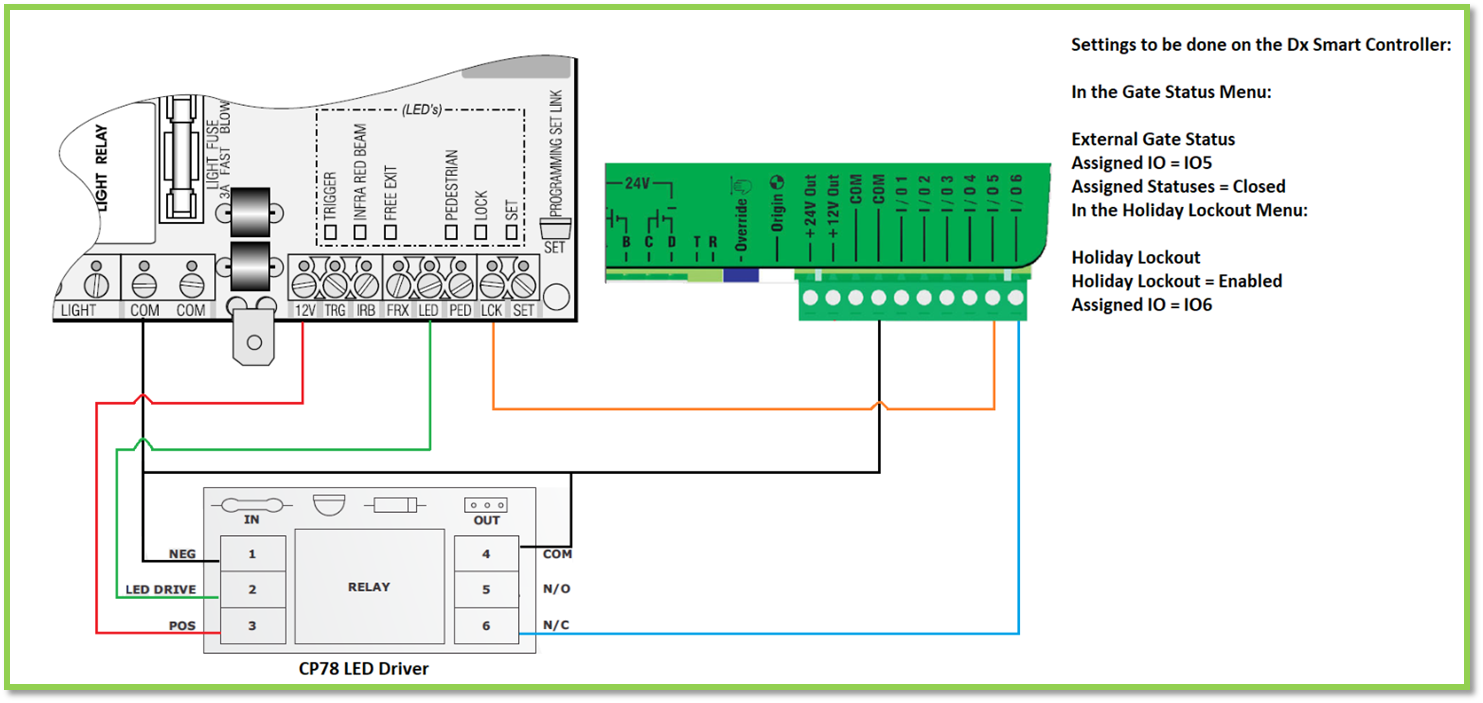

Wiring diagram and settings to be done on the DX Smart controller:
