How to connect an external receiver to fully open and close the gate via remote button (trigger gate) on the D5 EVO.

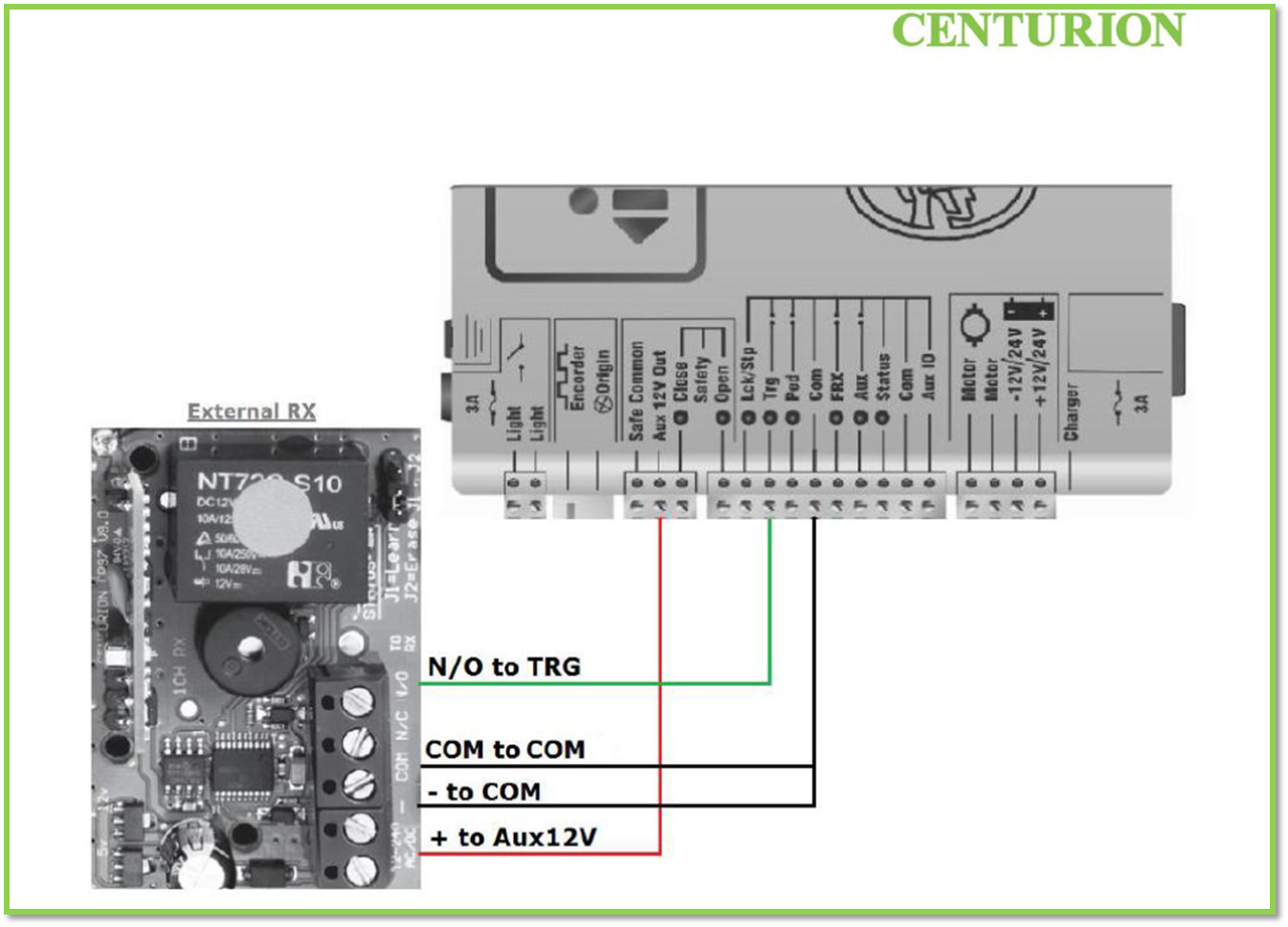

Kindly follow the wiring diagram below to fully open and close the gate via remote button using an external receiver (TRG).
Related Articles
How to connect an external receiver to fully open and close the gate via remote button (trigger gate).
Kindly follow the wiring diagram below to fully open and close the gate via remote button using an external receiver (TRG).How to wire an external receiver for the trigger funtion to a Centurion D5 EVO SMART sliding gate operator
The below is a diagram of a external receiver wired to a Centurion D5 EVO SMART sliding gate operator. This configuration will allow for gate activation on trigger using a external remote. Here are the configuration steps to follow after wiring an ...How to wire a External receiver to an Centurion D3 SMART sliding gate operator
The below is a diagram of a external receiver wired to a Centurion D3 SMART sliding gate operator. This configuration will allow for gate activation on trigger and/or pedestrian inputs of the gate operator using a external remote. Here are the ...Learning a Remote Button for the Trigger Gate Function on D5 EVO or D10
Should you desire to program a new Nova Remote button to the onboard receiver of the D5 EVO or D10 for the trigger gate function, which essentially opens or closes the gate, please follow the steps outlined below: Learning a Remote Button for Trigger ...How to wire a maglock on to a D5 EVO - Wiring diagram
This wiring diagram illustrates the proper connection of a maglock to the D5 Evo controller, enhancing the security features of your gate motor system. To achieve this, kindly follow the wiring diagram below: Kindy refer to the settings that needs to ...
