How to connect a solar panel to the D5 EVO Smart controller

How to connect a solar panel to the D5 EVO Smart controller

Notes

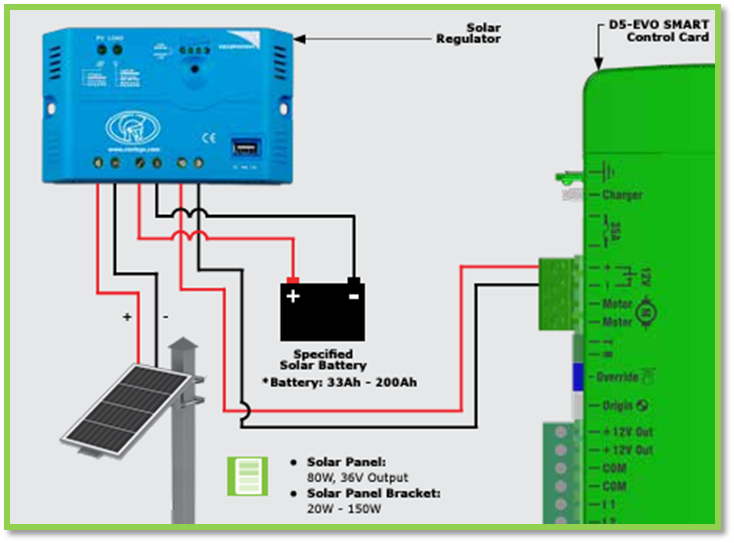

The below is a diagram  of a Solar Panel, external battery and regulator wired to  a Centurion D5 EVO SMART sliding gate operator.  This setup enables the motor to be powered by a solar system rather than mains power.
Info
Solar Panel Wiring:
