How to change the SDO4 garage operator to the full power setting

How to change the SDO4 garage operator to the full power setting

Notes
When the motor is in standby mode (indicated by a single dot "." on the LCD screen), follow these steps to enter the menu and enable FP mode:

Info

  1. Enter the Menu Structure:

    • Press the Yellow "+" and Blue "-" buttons simultaneously.
    • The LCD screen will display "Sb", indicating that you have entered the menu.

  2. Navigate to FP Mode:

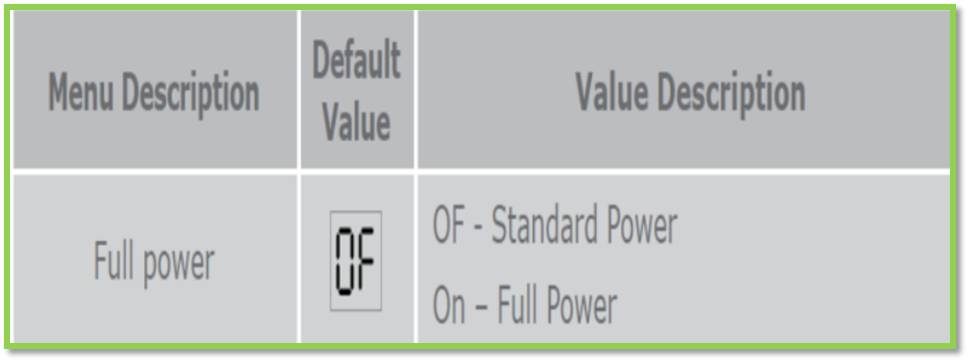

    • Use the "+" and "-" buttons to scroll through the menu options until "FP"
       appears on the screen:

    • Press the Green "Confirm" button to enter FP mode settings.

  3. Enable FP Mode:

    • Use the "+" and "-" buttons to select "ON".
    • Press the Green "Confirm" button to save the setting.

  4. Exit the Menu:

    • Press the Red "Learn" button to exit the menu and return to standby mode.

Idea
Your settings are now applied.
