How do I override Auto FRX on Sector Controllers

How do I override Auto FRX on Sector Controllers

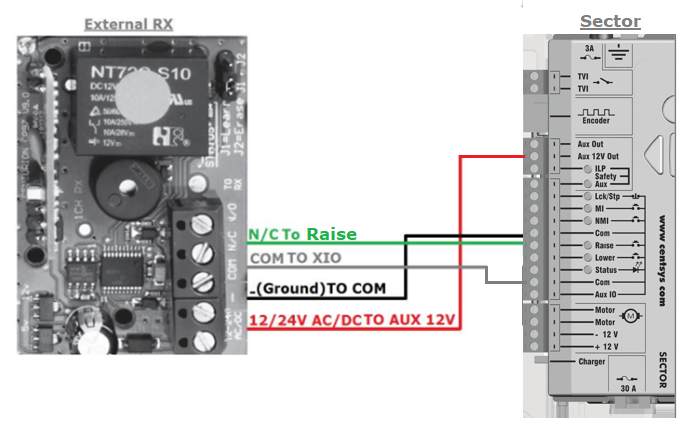

Wiring:


Programming:

1. Under Chrono-guard menu select Auto XIO
2. Select start time and end time (Ex. Start: MTWTF 07:00, End: MTWTF 17:00)
3. Invert logic OFF
4. Remote learned in as a Latch on the receiver.

Basic Operation:

When XIO is active during the pre-set time from Chrono-Guard a negative will be present on the COM of the relay hence completing the circuit from COM to RAISE (on the Sector controller) once the remote is pressed latching the Relay on the N/O position the circuit will be open and the operator can be used as normal.
