How to Time-Bar an External Loop Detector on DX SMART Gate Motors - Wiring Diagram
Limiting the operation of the exit loop during specific times can enhance security by preventing unauthorized or unmonitored vehicle exits during vulnerable periods, such as late at night or during non-business hours. During the designated time periods, the loop detector will operate as usual. However, outside of these set times, the loop detector will not function because the circuit for the input will remain open.

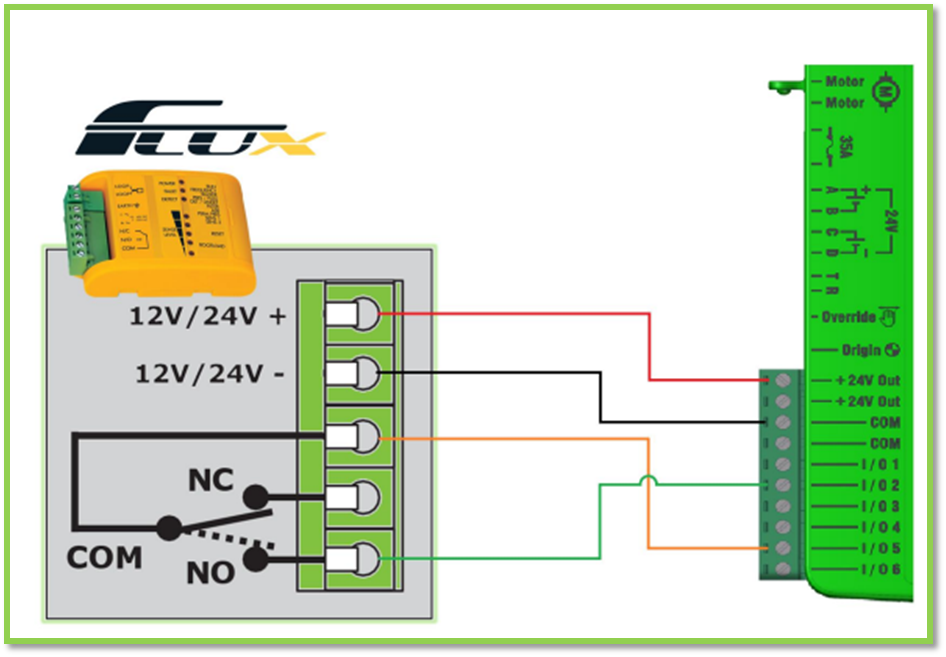

Wiring Diagrams:
Setting and configuration:
Step 1:

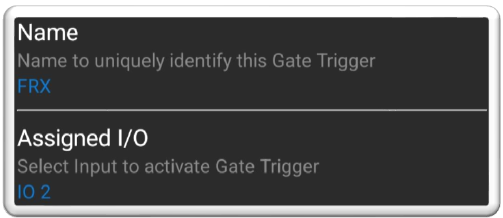

Trigger Configuration → Assign FRX to I/O2
Step 2:

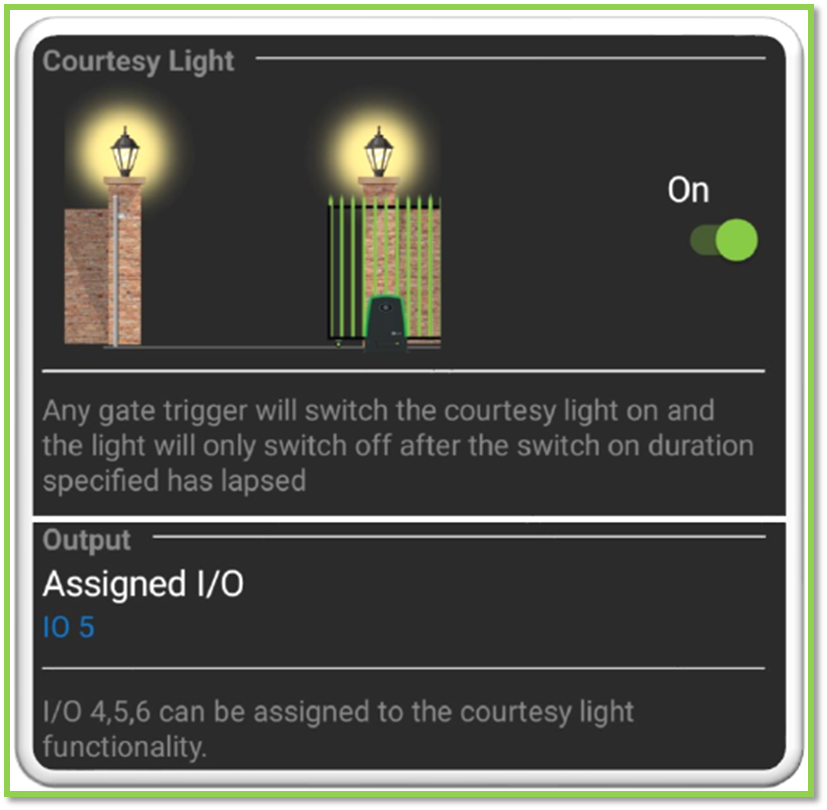

Courtesy Light → Switch on the Courtesy Light feature and assign I/O
Step 3:

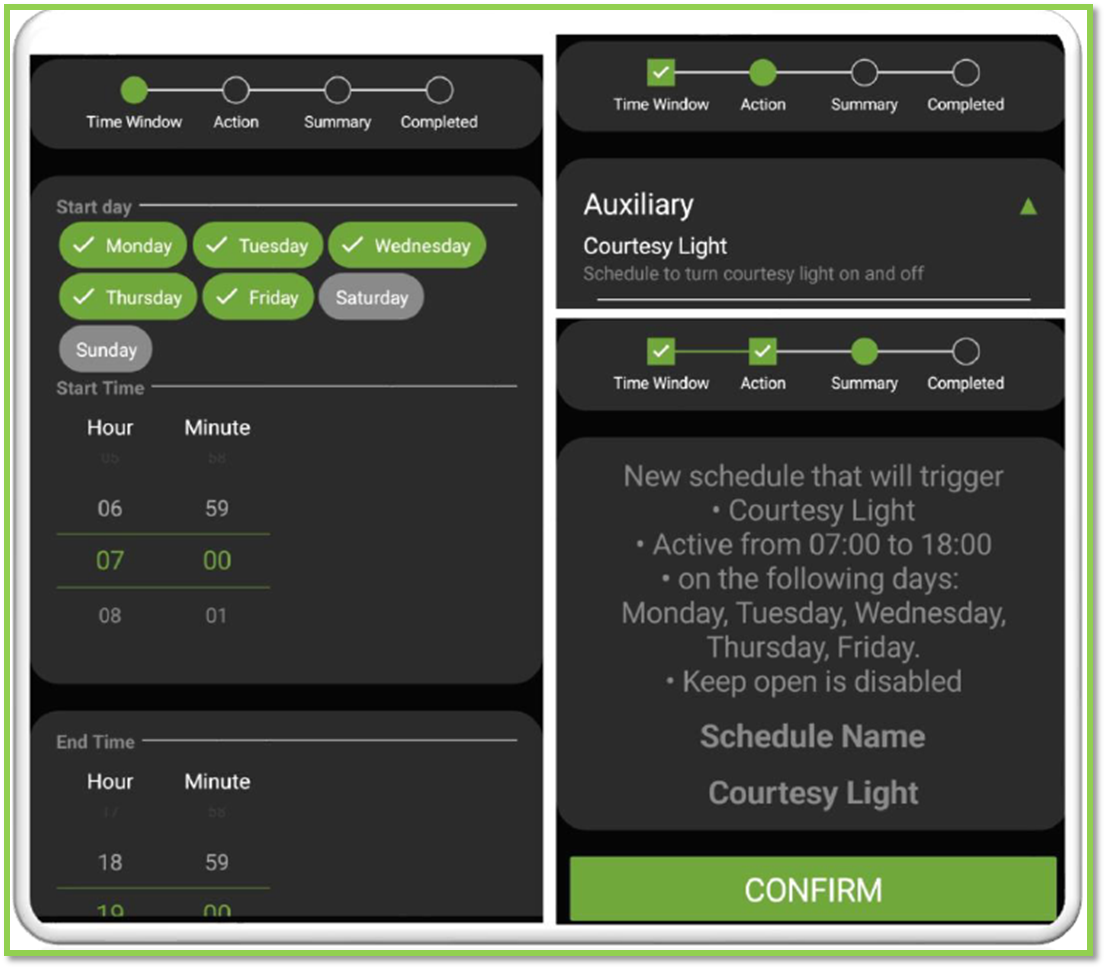

Trigger Schedules → Add New, Recurring, Select Start day(s), Set Start Time, Set End Time, Select Courtesy Light.
