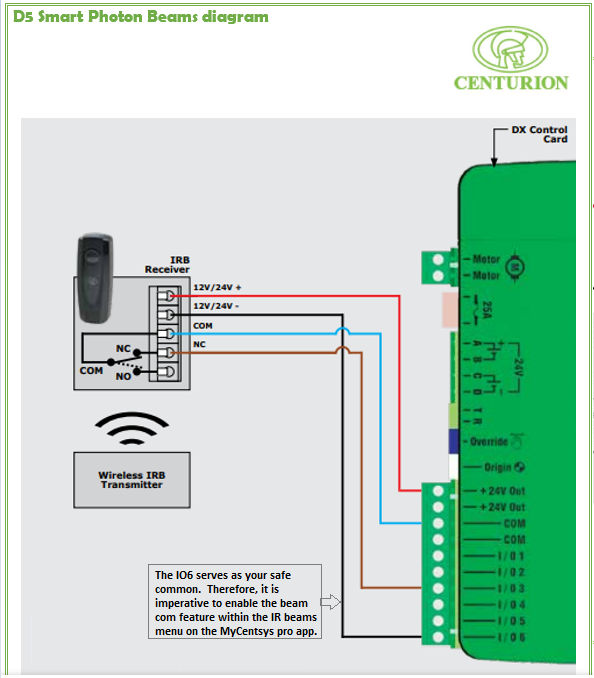

Smart sliding motor - Photon Beams diagram
Setting on APP for closing beam:
Setting < IRB Menu:
Closing beam: ON
Open beam: OFF
Assigned IO: select IO used for beam N/C
N/B: If beam common is used, enable beam common under the IR beam menu
---------------------------------------------------------------------------------------------
Setting on APP for opening beam:
Setting < IRB Menu:
Closing beam: OFF
Open beam: ON
Assigned IO: select IO used for beam N/C
N/B: If beam common is used, enable beam common under the IR beam menu
