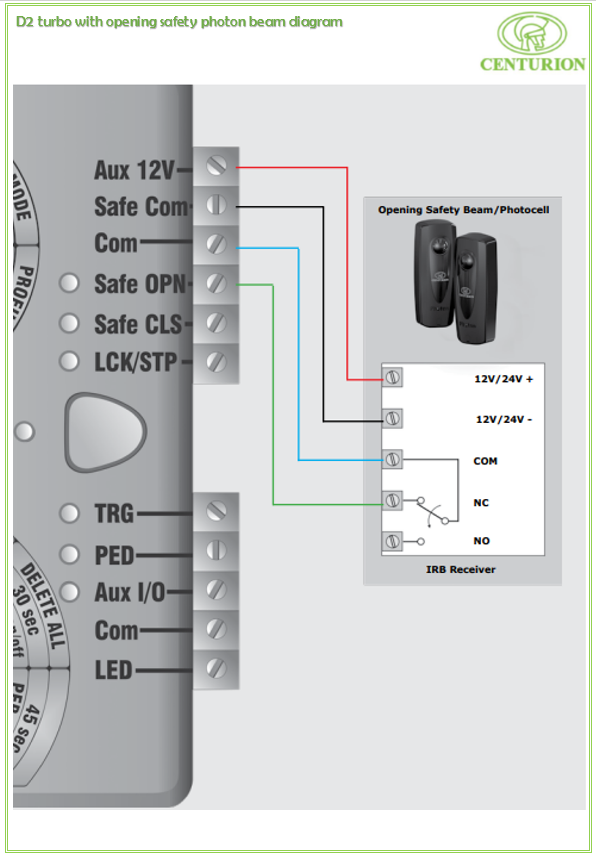

D2 Turbo with Opening Safety Photon Beam Diagram

• Related Articles

• SDO5 SMART+ Photon Safety Beam Wiring Guide

  Wiring Diagram Wiring a Photon Safety Beam to the SDO5 SMART+ Summary A step-by-step guide explaining how to correctly wire a Photon Safety Beam to an SDO5 SMART+ garage door operator, ensuring safe operation and reliable obstacle detection. Note: ...

• SDO5 SMART+ I5 Safety Beams Wiring Guide

  Wiring Diagram Wiring I5 Safety Beams to the SDO5 SMART+ Summary A step-by-step guide explaining how to correctly wire I5 Safety Beams to an SDO5 SMART+ garage door operator, ensuring safe operation and reliable obstacle detection. Note: Ensure that ...

• Photon Infrared Gate Safety Beams User Guide

  Please find attached the User Guide for the Photon Infrared Gate Safety Beams, which includes the following sections: Introduction Safety instructions Icons used in the guide Operation Technical specification Installation Kindly refer to the guide ...

• D2 Turbo with Opening Safety I5 Beam Diagram

• How to wire a maglock on to a D5 EVO - Wiring diagram

  This wiring diagram illustrates the proper connection of a maglock to the D5 Evo controller, enhancing the security features of your gate motor system. To achieve this, kindly follow the wiring diagram below: Kindy refer to the settings that needs to ...
