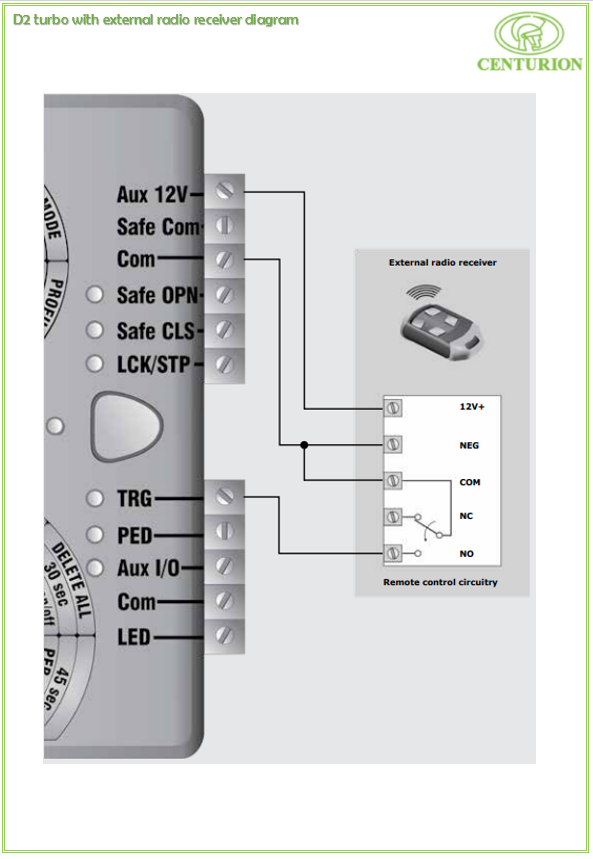

D2 Turbo with External Radio Receiver Diagram

• Related Articles

• How to connect an external receiver to fully open and close the gate via remote button (trigger gate) on the D5 EVO.

  Kindly follow the wiring diagram below to fully open and close the gate via remote button using an external receiver (TRG).

• How to wire a maglock on to a D5 EVO - Wiring diagram

  This wiring diagram illustrates the proper connection of a maglock to the D5 Evo controller, enhancing the security features of your gate motor system. To achieve this, kindly follow the wiring diagram below: Kindy refer to the settings that needs to ...

• D5 Evo/D10/D10 Turbo Configuration Guide

  Please find attached the installation manual for the D5 Evo/D10/D10 Turbo, which includes the following sections: Commissioning the system Setting up additional features Menu navigation map Diagnostic LED's Buzzer feedback Electrical setup ...

• D2 Turbo User Guide

  Please find attached the Mechanical User Guide for the D2 Turbo, which includes the following sections: Identification of parts manual override Features and functions Customizing the features and functions Additional features Basic maintenance ...

• D10/D10 Turbo Mechanical Installation Guide

  Please find attached the installation manual for the D10/D10 Turbo, which includes the following sections: Introduction Specifications Product identification Required tools and equipment New site installation preparation Lubrication Operator ...
